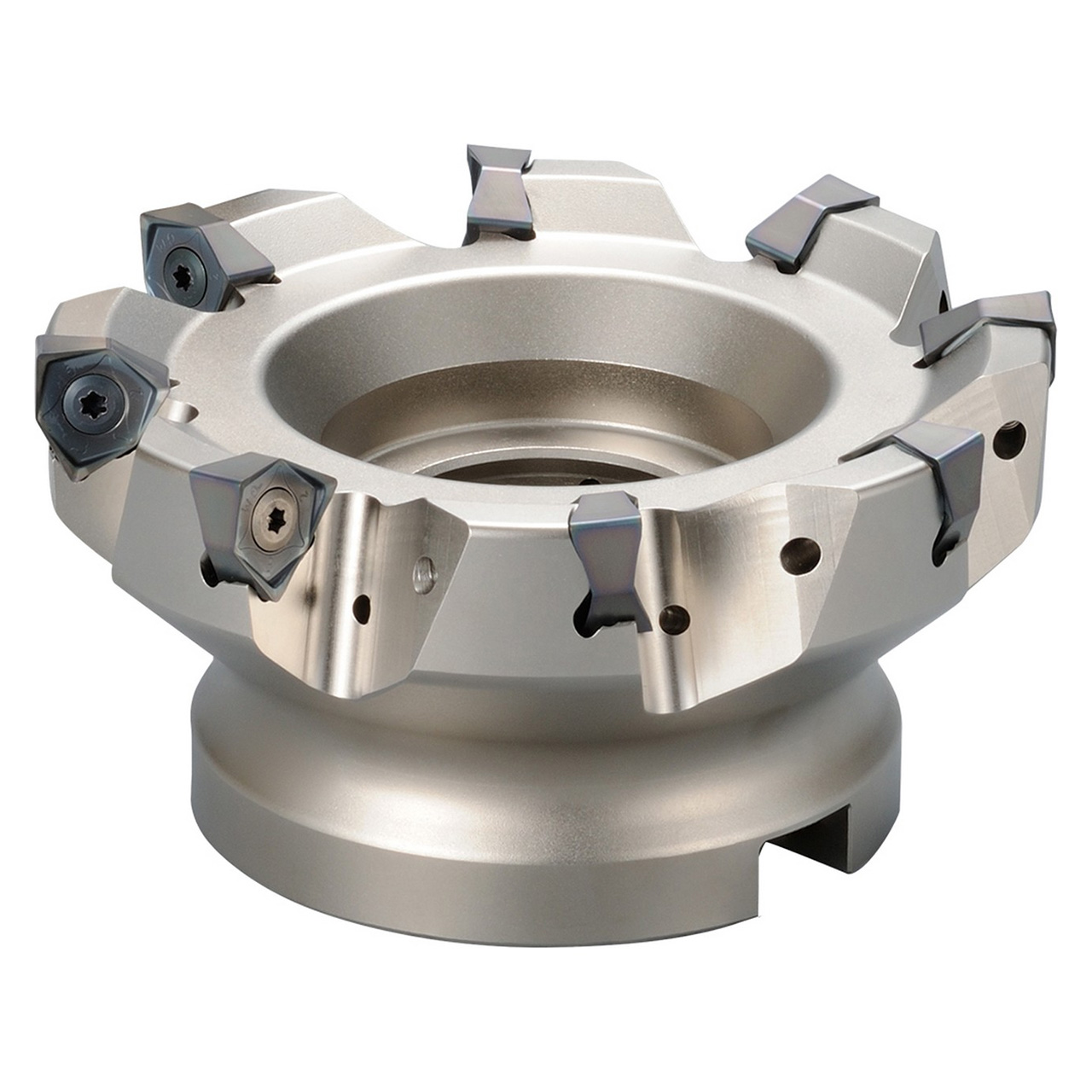

Features:
- 90 Degree Lead angle face mill
- Application: shouldering, facing, slotting, plunging
- Economical double-sided 6-edge inserts
- Sharp cutting due to lower cutting forces
- Resistant to chattering and applicable to long overhang
Product Specifications
| EDP Number | THN04663 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150" |
| Cutting Diameter (Decimal Inch) | 6.2992" |
| Cutting Diameter (mm) | 160.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 6.2992" |
| Cutting Diameter Minimum (mm) | 160.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 6.2992" |
| Cutting Diameter Maximum (mm) | 160.00mm |
| Cutting Diameter Maximum (mm) | 2.0000" |
| Connection Bore Diameter (mm) | 50.80mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 4.0158" |
| Contact Surface Diameter Machine Side (mm) | 102.00mm |
| Tool Entering Angle ( Degree) | 90 Degree |
| Application | Facing, Plunging, Shouldering, Slotting |
| Cutter Pitch | Coarse Pitch |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 8 |
| Number of Inserts | 8 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
6-19/64"
Cutting Diameter (Decimal Inch):
6.2992"
Cutting Diameter (mm):
160.00mm
Maximum Depth of Cut (Inch):
5/16"
Maximum Depth of Cut (Decimal Inch):
0.3150"
Maximum Depth of Cut (mm):
8mm
Arbor Hole Diameter (Inch):
2"
Arbor Hole Diameter (Decimal Inch):
2.0000"
Arbor Hole Diameter (mm):
50.80mm
Series:
MFWN;Cutter Style=MFWN"
Number of Cutter Inserts:
8
interval quantity:
1
