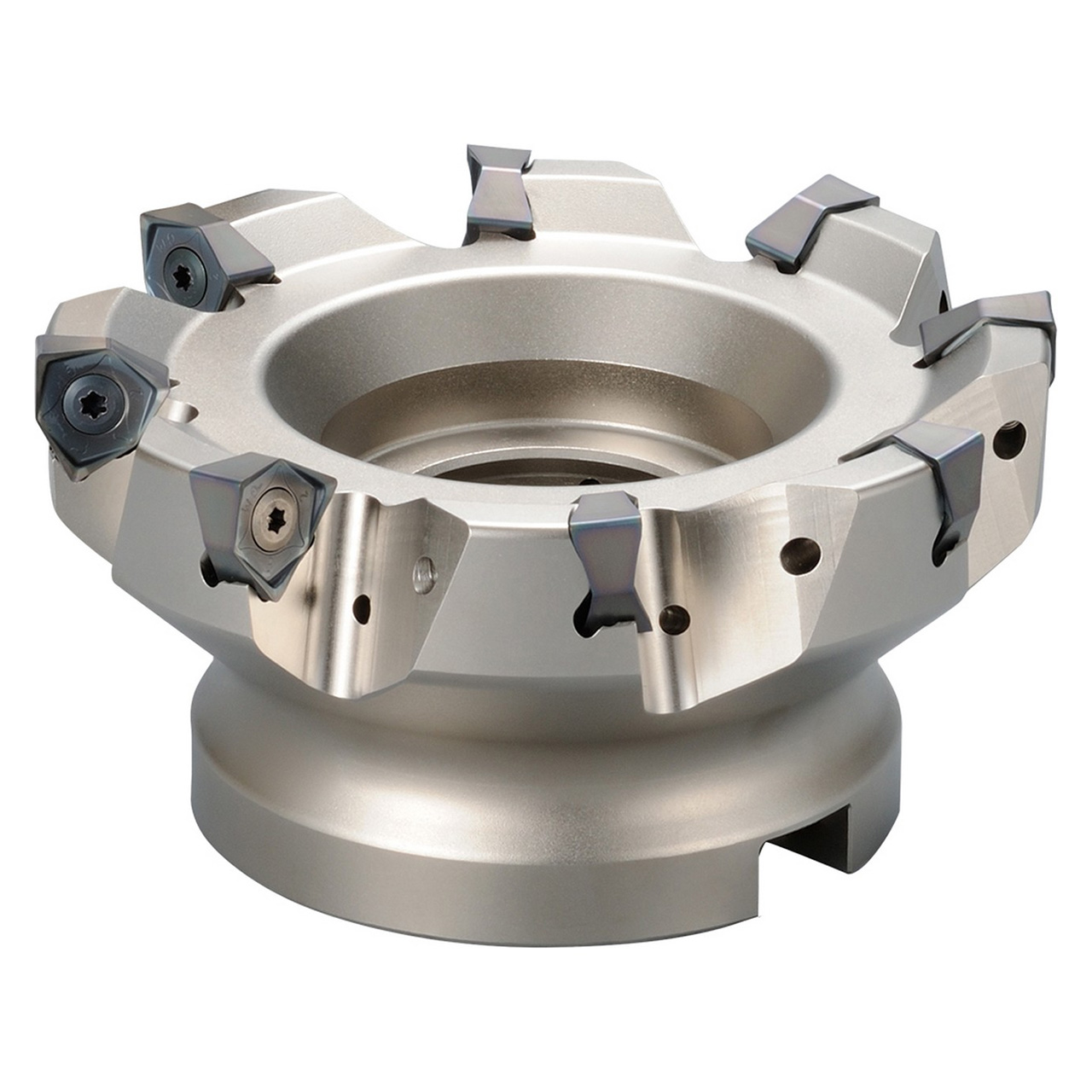

Kyocera Precision Tools THN04710 | MFWN90063R5TM 2.4803" Diameter x 90 Degree Angle 5 Flute Steel Indexable Face Mill

$806.47 $669.37
(You save $137.10)
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
2-31/64"
Cutting Diameter (Decimal Inch):
2.4803"
Cutting Diameter (mm):
63.00mm
Maximum Depth of Cut (Inch):
5/16"
Maximum Depth of Cut (Decimal Inch):
0.3150"
Maximum Depth of Cut (mm):
8mm
Arbor Hole Diameter (Inch):
55/64"
Arbor Hole Diameter (Decimal Inch):
0.8661"
Arbor Hole Diameter (mm):
22.00mm
Series:
MFWN;Cutter Style=MFWN"
Number of Cutter Inserts:
5
interval quantity:
1
SKU:
23233345
UPC:
Weight:
1.41 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • 90 Degree Lead angle face mill
  • Application: shouldering, facing, slotting, plunging
  • Economical double-sided 6-edge inserts
  • Sharp cutting due to lower cutting forces
  • Resistant to chattering and applicable to long overhang

Product Specifications
EDP NumberTHN04710
Maximum Depth of Cut (Decimal Inch)0.3150"
Cutting Diameter (Decimal Inch)2.4803"
Cutting Diameter (mm)63.00mm
Cutting Diameter Minimum (Decimal Inch)2.4803"
Cutting Diameter Minimum (mm)63.00mm
Cutting Diameter Maximum (Decimal Inch)2.4803"
Cutting Diameter Maximum (mm)63.00mm
Cutting Diameter Maximum (mm)0.8661"
Connection Bore Diameter (mm)22.00mm
Contact Surface Diameter Machine Side (Decimal Inch)1.8504"
Contact Surface Diameter Machine Side (mm)47.00mm
Tool Entering Angle ( Degree)90 Degree
ApplicationFacing, Plunging, Shouldering, Slotting
Coolant Through (Yes/No)Yes
Cutter PitchExtra Fine Pitch
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes5
Number of Inserts5
