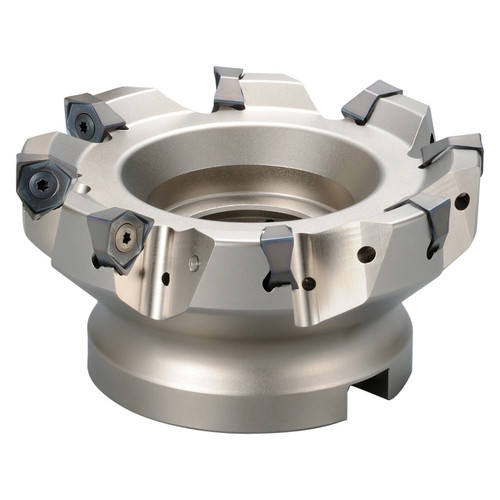

Kyocera Precision Tools THN04730 | MFWN908000R10T 8.0000" Diameter x 90 Degree Angle 10 Flute Steel Indexable Face Mill

$2,595.08 $2,153.92
(You save $441.16)
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
8"
Cutting Diameter (Decimal Inch):
8.0000"
Cutting Diameter (mm):
203.20mm
Maximum Depth of Cut (Inch):
5/16"
Maximum Depth of Cut (Decimal Inch):
0.3150"
Maximum Depth of Cut (mm):
8mm
Arbor Hole Diameter (Inch):
2-1/2"
Arbor Hole Diameter (Decimal Inch):
2.5000
Arbor Hole Diameter (mm):
63.50
Series:
MFWN;Cutter Style=MFWN"
Number of Cutter Inserts:
10
interval quantity:
1
SKU:
23233358
UPC:
Weight:
14.35 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • 90 Degree Lead angle face mill
  • Application: shouldering, facing, slotting, plunging
  • Economical double-sided 6-edge inserts
  • Sharp cutting due to lower cutting forces
  • Resistant to chattering and applicable to long overhang

Product Specifications
EDP NumberTHN04730
Maximum Depth of Cut (Decimal Inch)0.3150"
Cutting Diameter (Decimal Inch)8.0000"
Cutting Diameter (mm)203.20mm
Cutting Diameter Minimum (Decimal Inch)8.0000"
Cutting Diameter Minimum (mm)203.20mm
Cutting Diameter Maximum (Decimal Inch)8.0000"
Cutting Diameter Maximum (mm)203.20mm
Cutting Diameter Maximum (mm)2.5000"
Connection Bore Diameter (mm)63.50mm
Contact Surface Diameter Machine Side (Decimal Inch)5.5906"
Contact Surface Diameter Machine Side (mm)142.00mm
Tool Entering Angle ( Degree)90 Degree
ApplicationFacing, Plunging, Shouldering, Slotting
Cutter PitchCoarse Pitch
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes10
Number of Inserts10
