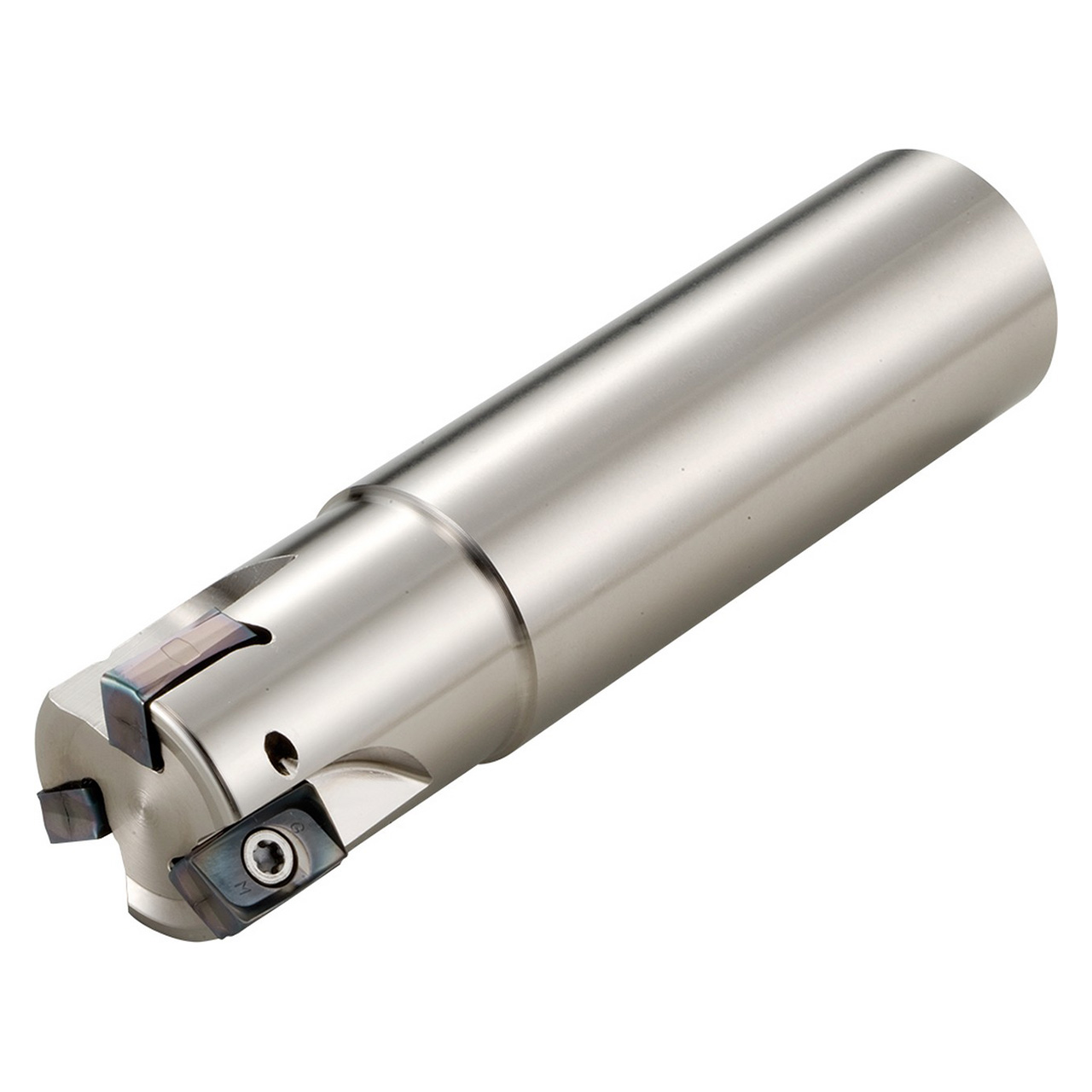

Features:
- The M-Four double-sided, 4-edge insert with Kyocera’s unique mold technology reduces cutting forces for reduced vibrations
- Low cutting forces equivalent to positive inserts
- Improved surface finish & minimized vibration
Product Specifications
| EDP Number | THN05083 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937" |
| Cutting Diameter (Decimal Inch) | 1.5748" |
| Cutting Diameter (mm) | 40.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 1.5748" |
| Cutting Diameter Minimum (mm) | 40.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 1.5748" |
| Cutting Diameter Maximum (mm) | 40.00mm |
| Connection Diameter (Decimal Inch) | 1.2598" |
| Connection Diameter (mm) | 32.00mm |
| Tool Entering Angle ( Degree) | 90 Degree |
| Application | Facing | Plunging | Shouldering | Slotting |
| Coolant Through (Yes/No) | Yes |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 5 |
| Number of Inserts | 5 |
| Shank Type | Standard Length |
| Weldon Flat | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
1-37/64"
Cutting Diameter (Decimal Inch):
1.5748"
Cutting Diameter (mm):
40.00mm
Maximum Depth of Cut (Inch):
25/64"
Maximum Depth of Cut (Decimal Inch):
0.3937"
Maximum Depth of Cut (mm):
10mm
Shank Type:
Standard Length
Shank Diameter (Decimal Inch):
1.2598"
Shank Diameter (mm):
32.00mm
Number of Cutter Inserts:
5
Toolholder Style:
MEW
