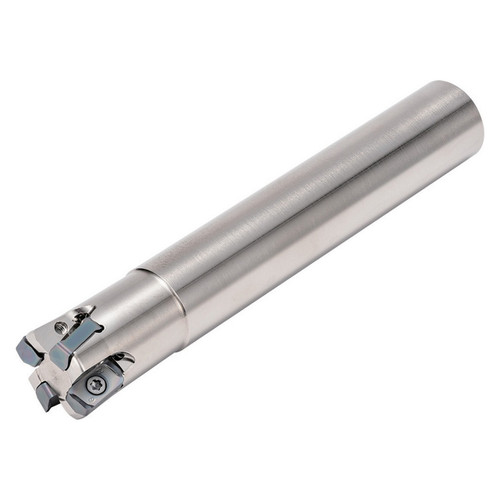

Features:
- Reduce cycle time during roughing applications
- Economical inserts with 4 cutting edges
- MFH-mini controls chip biting with convex cutting edge design
- Fine pitch availability for efficient machining
- Compatible with (3) LOGU03 style inserts
Product Specifications
| EDP Number | THN07598 |
| Maximum Depth of Cut (Decimal Inch) | 0.0394" |
| Cutting Diameter (Decimal Inch) | 0.5512 - 0.8661" |
| Cutting Diameter (mm) | 14.00 - 22.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 0.5512" |
| Cutting Diameter Minimum (mm) | 14.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 0.8661" |
| Cutting Diameter Maximum (mm) | 22.00mm |
| Connection Diameter (Decimal Inch) | 0.7874" |
| Connection Diameter (mm) | 20.00mm |
| Tool Entering Angle ( Degree) | 10 Degree |
| Application | Facing | Helical Milling | Plunging | Ramping | Shouldering | Slotting |
| Coolant Through (Yes/No) | Yes |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 3 |
| Number of Inserts | 3 |
| Shank Type | Standard Length |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
55/64"
Cutting Diameter (Decimal Inch):
0.8661"
Cutting Diameter (mm):
22.00mm
Maximum Depth of Cut (Inch):
3/64"
Maximum Depth of Cut (Decimal Inch):
0.0394"
Maximum Depth of Cut (mm):
1mm
Shank Type:
Standard Length
Shank Diameter (Decimal Inch):
0.7874"
Shank Diameter (mm):
20.00mm
Number of Cutter Inserts:
3
Toolholder Style:
MFH
