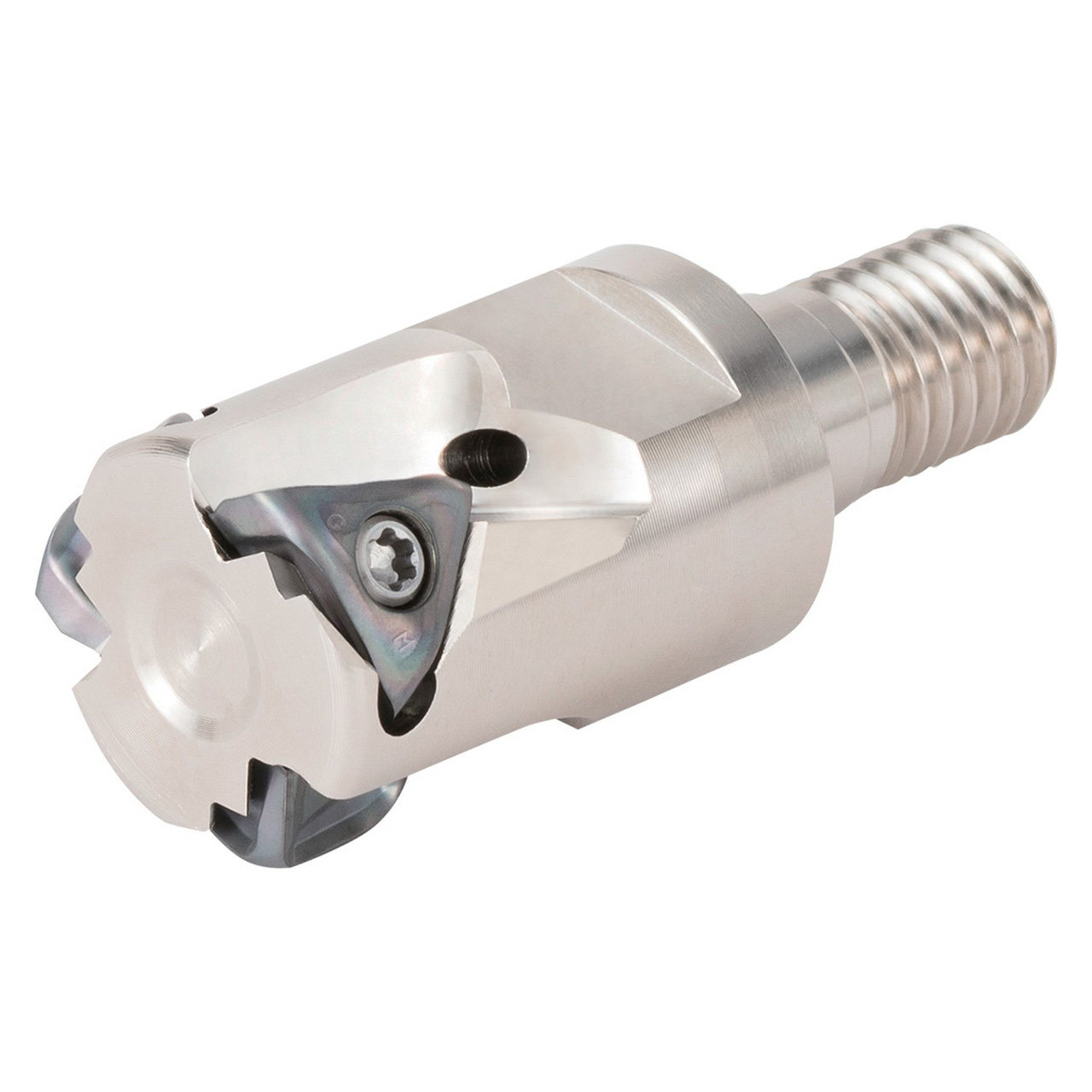

Kyocera Precision Tools THN08498 | MEV25M12063T 0.9843" Diameter x 0.2362" Max Depth of Cut x 0.7480" Shank Height 3 Flute Steel Modular Head End Mill

$276.47
Brand:
Kyocera Precision Tools
Series:
MEV;Cutting Diameter (Inch)=63/64"""
Cutting Diameter (Decimal Inch):
0.9843"
Cutting Diameter (mm):
25.00mm
Insert Style:
MEV
Maximum Depth of Cut (Inch):
15/64"
Maximum Depth of Cut (Decimal Inch):
0.2362"
Maximum Depth of Cut (mm):
6mm
SKU:
23233976
Weight:
0.40 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • High performance, economical, multi-function milling cutters
  • Low cutting forces and higher rigidity for excellent chatter resistance
  • Longer insert and holder tool life
  • Can be used in shouldering, slotting, and ramping applications

Product Specifications
EDP NumberTHN08498
Maximum Depth of Cut (Decimal Inch)0.2362"
Maximum Depth of Cut (mm)53.00mm
Cutting Diameter (Decimal Inch)0.9843"
Cutting Diameter (mm)25.00mm
Cutting Diameter Minimum (Decimal Inch)0.9843"
Cutting Diameter Minimum (mm)25.00mm
Cutting Diameter Maximum (Decimal Inch)0.9843"
Cutting Diameter Maximum (mm)25.00mm
Connection Diameter (Decimal Inch)0.4921"
Connection Diameter (mm)12.50mm
Contact Surface Diameter Machine Side (Decimal Inch)0.9055"
Contact Surface Diameter Machine Side (mm)23.00mm
Shank Height (Decimal Inch)0.7480"
Shank Height (mm)19.00mm
Tool Entering Angle ( Degree)90 Degree
ApplicationRamping | Shouldering | Slotting
Coolant Through (Yes/No)Yes
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes3
Number of Inserts3
Shank TypeModular Connection
