Features:

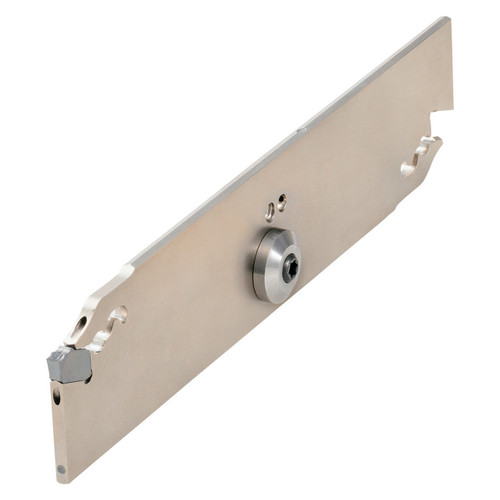

- Neutral KTKB series, cut-off blade
- Maximum cut-off diameter 80mm
- Compatible with KTKTB26 tool blocks and TKN4, TK4 inserts
Product Specifications
| EDP Number | THP05180 |
| Maximum Depth of Cut (mm) | 10.00mm |
| Maximum Cut-Off Diameter (Decimal Inch) | 3.1496" |
| Maximum Cut-Off Diameter (mm) | 80.00mm |
| Cutting Width (Decimal Inch) | 0.1614" |
| Cutting Width (mm) | 4.10mm |
| Cutting Width Minimum (Decimal Inch) | 0.1614" |
| Cutting Width Minimum (mm) | 4.10mm |
| Cutting Width Maximum (Decimal Inch) | 0.1614" |
| Cutting Width Maximum (mm) | 4.10mm |
| Application | Cut-Off |
| Hand | Neutral |
| Insert Holding Method | Self-Clamp |
| Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Direction:
Neutral
Blade Style:
KTKB-S
