Features:

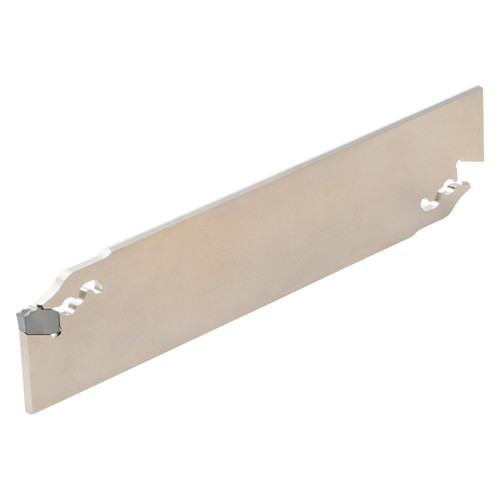

- Neutral KPKB series, cut-off blade
- Maximum cut-off diameter 50mm
- Compatible with KPKTB-26JCT, KTKTB-26 tool blocks and PKM20 inserts
Product Specifications
| EDP Number | THP06795 |
| Maximum Depth of Cut (mm) | 8.00mm |
| Maximum Cut-Off Diameter (Decimal Inch) | 1.9685" |
| Maximum Cut-Off Diameter (mm) | 50.00mm |
| Cutting Width (Decimal Inch) | 0.0787 - 0.0945" |
| Cutting Width (mm) | 2.00 - 2.40mm |
| Cutting Width Minimum (Decimal Inch) | 0.0787" |
| Cutting Width Minimum (mm) | 2.00mm |
| Cutting Width Maximum (Decimal Inch) | 0.0945" |
| Cutting Width Maximum (mm) | 2.40mm |
| Application | Cut-Off |
| Hand | Neutral |
| Insert Holding Method | Self-Clamp |
| Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Direction:
Neutral
Blade Style:
KPKB
