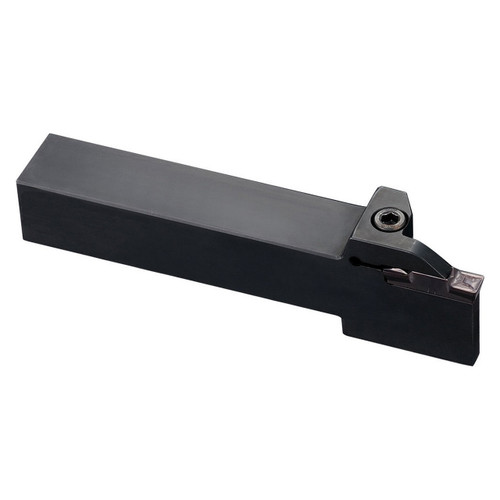

Features:
- Improved insert clamping force generated by an innovative toolholder design
- Smooth chip control with numerous chipbreakers to choose from for a variety of workpieces
- Compatible with GDM3, GDMS3, GDG3, GDGS3, GDM4, GDMS4, GDG4, GDGS4 inserts
Product Specifications
| EDP Number | THT03803 |
| Maximum Depth of Cut (mm) | 1.00mm |
| Shank Width (mm) | 16.00mm |
| Max Depth of Cut (Decimal Inch) | 0.7874" |
| Max Depth of Cut (mm) | 20.00mm |
| Cutting Width (Decimal Inch) | 0.1181 - 0.1575" |
| Cutting Width (mm) | 3.00 - 4.00mm |
| Cutting Width Minimum (Decimal Inch) | 0.1181" |
| Cutting Width Minimum (mm) | 3.00mm |
| Cutting Width Maximum (Decimal Inch) | 0.1575" |
| Cutting Width Maximum (mm) | 4.00mm |
| Shank Height (Decimal Inch) | 0.6299" |
| Shank Height (mm) | 16.00mm |
| Application | Cut-Off | External Grooving |
| Grooving Type | External Grooving |
| Hand | Left Hand |
| Insert Holding Method | Screw |
| Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Toolholder Type:
External Grooving
Hand of Holder:
Left-Hand
Maximum Depth of Cut (Decimal Inch):
0.7874"
Maximum Depth of Cut (mm):
20.00mm
Toolholder Style:
KGD
Shank Height (Decimal Inch):
0.6299"
Shank Height (mm):
16.00mm
Shank Width/Diameter (Decimal Inch):
0.6299"
Shank Width/Diameter (mm):
16.00mm
Series:
KGD;Through Coolant=No"
