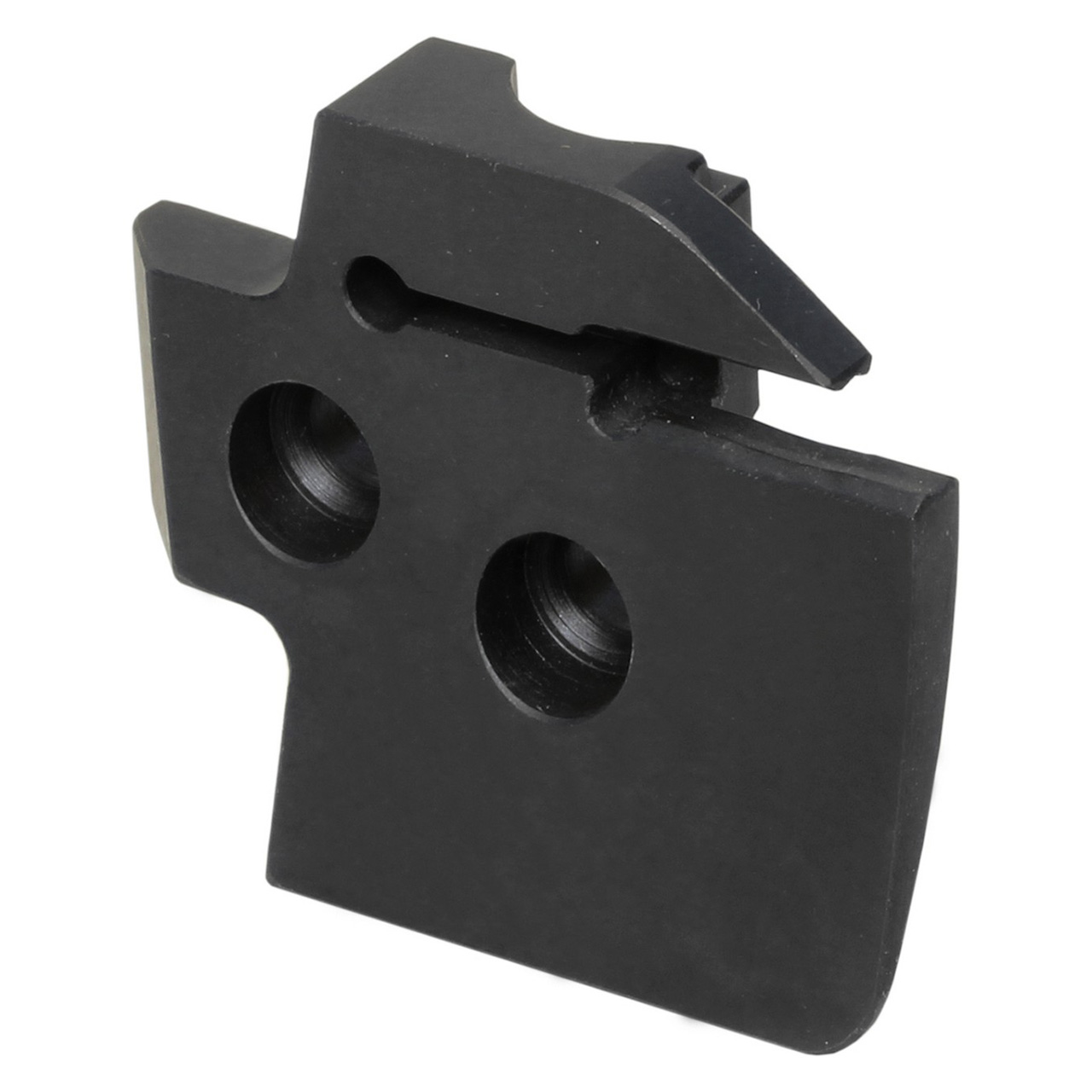

Features:
- Good chip control with a wide range of chipbreakers
- MEGACOAT coating technology for long tool life and high efficiency machining
- High clamping strength prevents abnormal machining surface and /or insert breakage resulting from slip of insert
Product Specifications
| EDP Number | THT04562 |
| Maximum Depth of Cut (mm) | 4.60mm |
| Max Depth of Cut (Decimal Inch) | 0.5906" |
| Max Depth of Cut (mm) | 15.00mm |
| Cutting Width (Decimal Inch) | 0.1969" |
| Cutting Width (mm) | 5.00mm |
| Cutting Width Minimum (Decimal Inch) | 0.1969" |
| Cutting Width Minimum (mm) | 5.00mm |
| Cutting Width Maximum (Decimal Inch) | 0.1969" |
| Cutting Width Maximum (mm) | 5.00mm |
| Minimum Face Groove Diameter (Decimal Inch) | 4.5276'' |
| Minimum Face Groove Diameter (mm) | 115.00mm |
| [DAXX] Maximum Face Groove Diameter (Decimal Inch) | 7.0866" |
| Maximum Face Groove Diameter (mm) | 180.00mm |
| Application | Face Grooving |
| Grooving Type | Face Grooving |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Minimum Groove Width (Decimal Inch):
4.5276"
Minimum Groove Width (mm):
115.00mm
Maximum Insert Width (Decimal Inch):
0.1969"
Maximum Insert Width (mm):
5.00mm
Minimum Insert Width (Decimal Inch):
0.1969"
Minimum Insert Width (mm):
5.00mm
Maximum Depth of Cut (Decimal Inch):
0.5906"
Maximum Depth of Cut (mm):
15.00mm
Blade Style:
KGDF
Series:
KGD
