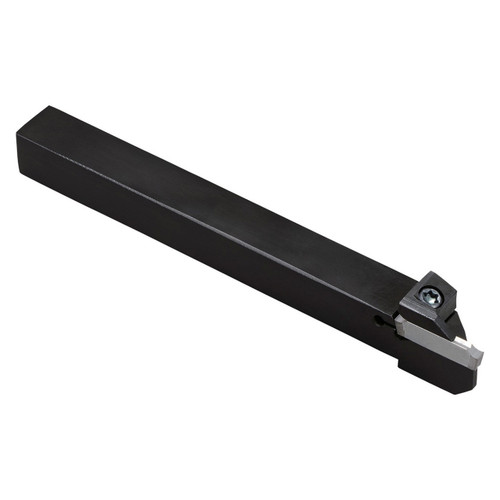

Features:
- Improved insert clamping force generated by an innovative toolholder design
- Smooth chip control with numerous chipbreakers to choose from for a variety of workpieces
- Compatible with GDM15 inserts
Product Specifications
| EDP Number | THT05185 |
| Maximum Depth of Cut (mm) | 0.51mm |
| Shank Width (mm) | 9.525mm |
| Max Depth of Cut (Decimal Inch) | 0.3937" |
| Max Depth of Cut (mm) | 10.00mm |
| Maximum Cut-Off Diameter (Decimal Inch) | 0.7874" |
| Maximum Cut-Off Diameter (mm) | 20.00mm |
| Cutting Width (Decimal Inch) | 0.0591" |
| Cutting Width (mm) | 1.50mm |
| Cutting Width Minimum (Decimal Inch) | 0.0591" |
| Cutting Width Minimum (mm) | 1.50mm |
| Cutting Width Maximum (Decimal Inch) | 0.0591" |
| Cutting Width Maximum (mm) | 1.50mm |
| Shank Height (Decimal Inch) | 0.3752" |
| Shank Height (mm) | 9.53mm |
| Application | Cut-Off | External Grooving | Small Parts Machining |
| Grooving Type | External Grooving |
| Hand | Left Hand |
| Insert Holding Method | Screw |
| Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Toolholder Type:
External Grooving
Hand of Holder:
Left-Hand
Maximum Depth of Cut (Decimal Inch):
0.3937"
Maximum Depth of Cut (mm):
10.00mm
Toolholder Style:
KGD
Shank Height (Decimal Inch):
0.3752"
Shank Height (mm):
9.53mm
Shank Width/Diameter (Decimal Inch):
0.3750"
Shank Width/Diameter (mm):
9.525mm
Series:
KGD;Through Coolant=No"
