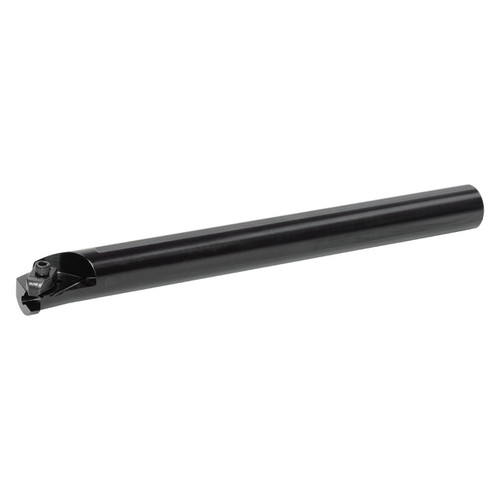

Kyocera Precision Tools THT89089 | A12SKKCR2 0.7500" Diameter x 0.7280" Shank Height Steel Internal Grooving Toolholder

$171.46
Brand:
Kyocera Precision Tools
Toolholder Type:
Internal Grooving
Hand of Holder:
Right-Hand
Maximum Depth of Cut (Decimal Inch):
0.1102"
Maximum Depth of Cut (mm):
2.80mm
Minimum Groove Width (Decimal Inch):
0.0311"
Minimum Groove Width (mm):
0.79mm
Maximum Groove Width (Decimal Inch):
0.0311"
Maximum Groove Width (mm):
0.79mm
Toolholder Style:
AÂ…KKC
Shank Height (Decimal Inch):
0.7280"
Shank Height (mm):
18.49mm
Shank Width/Diameter (Decimal Inch):
0.7500"
Shank Width/Diameter (mm):
19.05mm
Series:
CERA;Through Coolant=Yes"
SKU:
23235075
Weight:
2.35 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • Right-Hand toolholder
  • Application: internal large diameter shallow grooving
  • Top clamp insert holding design
  • Compatible with Left-Hand KCG2L, KCGP2L, KCRP2L inserts
  • Universal grooving geometry is easily interchangeable with a wide variety of holders

Product Specifications
EDP NumberTHT89089
Shank Width (Decimal Inch)1.1417"
Max Depth of Cut (Decimal Inch)0.1102"
Max Depth of Cut (mm)2.80mm
Cutting Width (Decimal Inch)0.0311"
Cutting Width (mm)0.79mm
Cutting Width Minimum (Decimal Inch)0.0311"
Cutting Width Minimum (mm)0.79mm
Cutting Width Maximum (Decimal Inch)0.0311"
Cutting Width Maximum (mm)0.79mm
Connection Diameter (Decimal Inch)0.7500"
Connection Diameter (mm)19.05mm
Minimum Bore Diameter (Decimal Inch)1.1250"
Minimum Bore Diameter (mm)28.575mm
Shank Height (Decimal Inch)0.7280"
Shank Height (mm)18.49mm
ApplicationLarge Diameter Shallow Grooving
Coolant Through (Yes/No)Yes
Grooving TypeInternal Grooving
HandRight Hand
Insert Holding MethodTop Clamp
MaterialSteel
