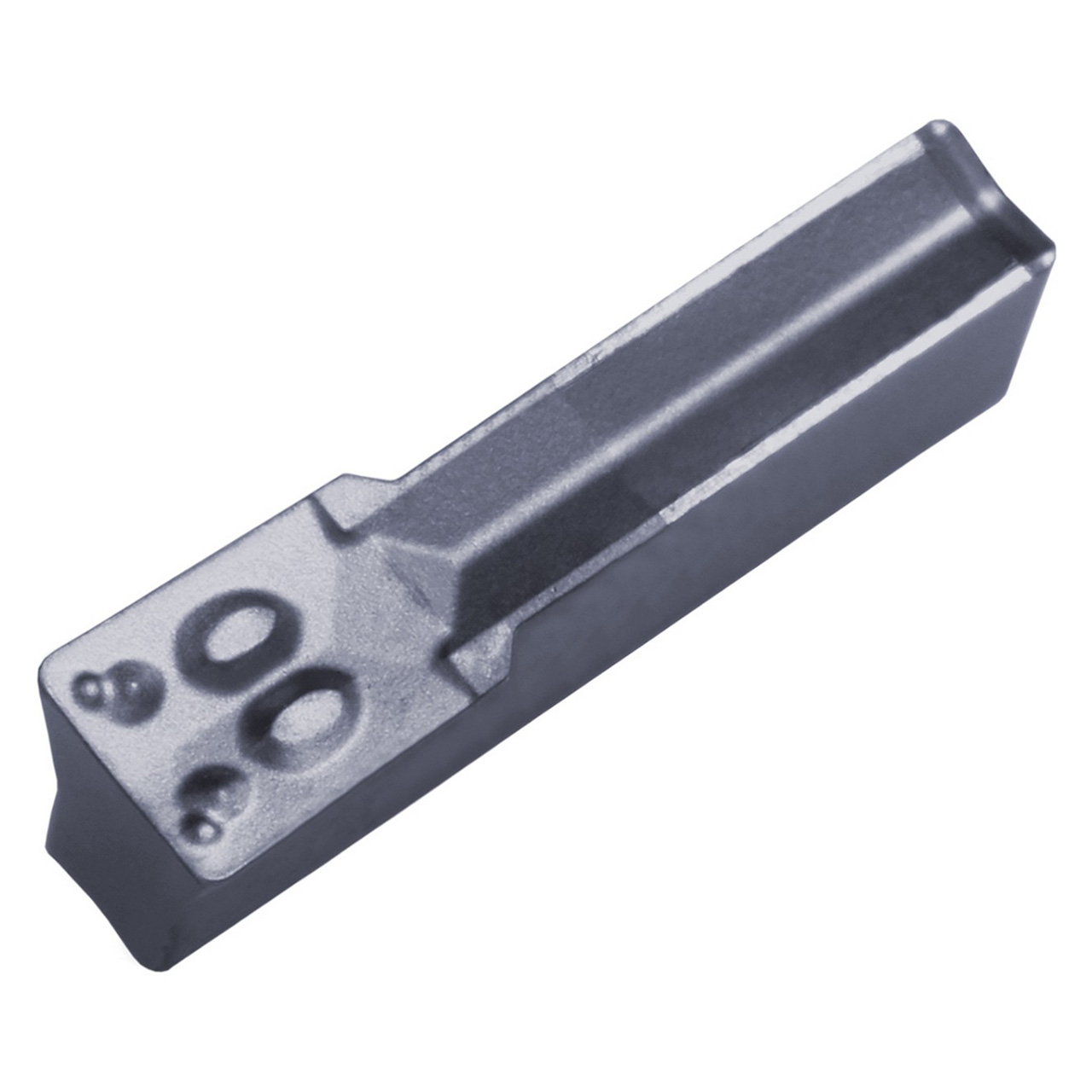

Features:
- Insert for face grooving
- Face Grooving / Chip Control Oriented / M Class
- 1 Cutting edge
- Smooth fine surface PVD coated hard carbide with plastic deformation resistance
- Application: Suitable for turning of gray and nodular cast iron
Product Specifications
| Tool Number | TJF10230 |
| Max Depth of Cut (Decimal Inch) | 1.2598" |
| Max Depth of Cut (mm) | 32.00mm |
| Cutting Width (Decimal Inch) | 0.1969" |
| Cutting Width (mm) | 5.00mm |
| Cutting Width Minimum (Decimal Inch) | 0.1969" |
| Cutting Width Minimum (mm) | 5.00mm |
| Cutting Width Maximum (Decimal Inch) | 0.1969" |
| Cutting Width Maximum (mm) | 5.00mm |
| Insert Length (Decimal Inch) | 0.4724" |
| Insert Length (mm) | 12.00mm |
| Corner Radius (Inch) | 1/64" |
| Corner Radius (mm) | 0.40mm |
| Thickness (Inch) | 0.138" |
| Thickness (mm) | 3.50mm |
| Application | Face Grooving |
| Coating Process | PVD |
| Cutting Range | Finishing Medium |
| Hand | Neutral |
| Insert Holding Method | Clamp |
| Insert Grade | PR905 |
| Insert Size | 5004 |
| Material | Carbide |
| Number of Cutting Edges | 1 |
| Primary Workpiece Material | Cast Iron (K) |
| Usage Classification | Light Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
FMM
Insert Size:
5004
Material:
Carbide;Cutting Width (Decimal Inch)=0.1969"""
Cutting Width (mm):
5.00mm
Maximum Depth of Cut (Decimal Inch):
1.2598"
Maximum Depth of Cut (mm):
32.00mm
Manufacturer's Grade:
PR905
Finish/Coating:
PVD
