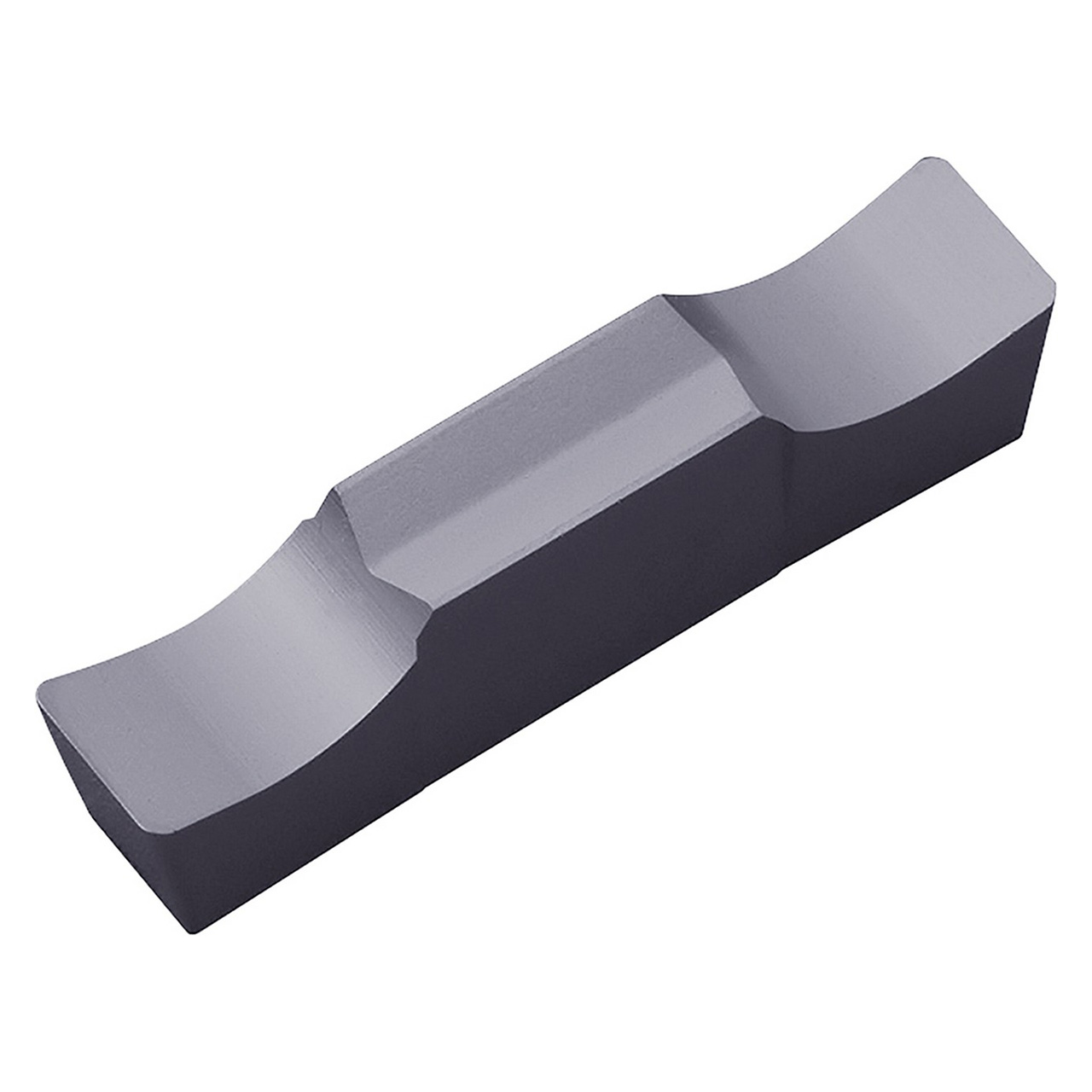

Features:
- Insert for external grooving
- Sharp-Cutting Oriented / Precision Class, Ground chipbreaker
- 2 Cutting edges
- Smooth fine surface PVD coated hard carbide with plastic deformation resistance
- Application: Suitable for turning of gray and nodular cast iron
Product Specifications
| Tool Number | TJF12423 |
| Max Depth of Cut (Decimal Inch) | 0.7874" |
| Max Depth of Cut (mm) | 20.00mm |
| Cutting Width (Decimal Inch) | 0.1181" |
| Cutting Width (mm) | 3.00mm |
| Cutting Width Minimum (Decimal Inch) | 0.1181" |
| Cutting Width Minimum (mm) | 3.00mm |
| Cutting Width Maximum (Decimal Inch) | 0.1181" |
| Cutting Width Maximum (mm) | 3.00mm |
| Insert Length (Decimal Inch) | 0.7874" |
| Insert Length (mm) | 20.00mm |
| Corner Radius (Inch) | 0.012" |
| Corner Radius (mm) | 0.30mm |
| Thickness (Inch) | 0.169" |
| Thickness (mm) | 4.30mm |
| Application | External Grooving |
| Chipbreaker | MG |
| Coating Process | PVD |
| Cutting Range | Finishing Medium |
| Hand | Neutral |
| Insert Holding Method | Clamp |
| Insert Grade | PR905 |
| Insert Size | 3020030 |
| Material | Carbide |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Cast Iron (K) |
| Usage Classification | Light Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
GMG
Insert Size:
3020030
Material:
Carbide;Cutting Width (Decimal Inch)=0.1181"""
Cutting Width (mm):
3.00mm
Maximum Depth of Cut (Decimal Inch):
0.7874"
Maximum Depth of Cut (mm):
20.00mm
Manufacturer's Grade:
PR905
Finish/Coating:
PVD
