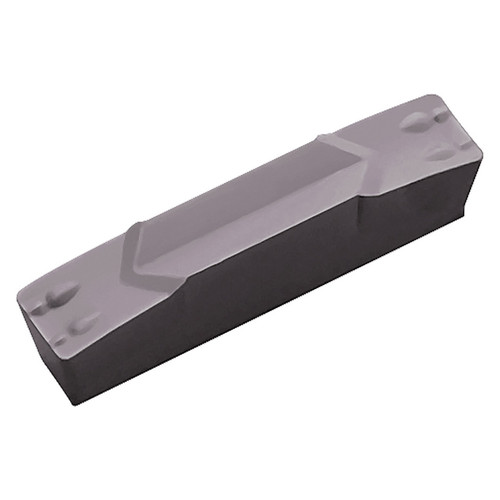

Kyocera Precision Tools TJF12433 | GMG8030050MG PR905 0.3150" Cutting width x 1.1811" Insert Length PVD Coated Carbide Grooving Insert

$44.61
Brand:
Kyocera Precision Tools
Insert Style:
GMG
Insert Size:
8030050
Material:
Carbide;Cutting Width (Decimal Inch)=0.3150"""
Cutting Width (mm):
8.00mm
Maximum Depth of Cut (Decimal Inch):
0.9843"
Maximum Depth of Cut (mm):
25.00mm
Manufacturer's Grade:
PR905
Finish/Coating:
PVD
SKU:
23235416
Weight:
0.42 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for external grooving
  • Sharp-Cutting Oriented / Precision Class, Ground chipbreaker
  • 2 Cutting edges
  • Smooth fine surface PVD coated hard carbide with plastic deformation resistance
  • Application: Suitable for turning of gray and nodular cast iron

Product Specifications
Tool NumberTJF12433
Max Depth of Cut (Decimal Inch)0.9843"
Max Depth of Cut (mm)25.00mm
Cutting Width (Decimal Inch)0.3150"
Cutting Width (mm)8.00mm
Cutting Width Minimum (Decimal Inch)0.3150"
Cutting Width Minimum (mm)8.00mm
Cutting Width Maximum (Decimal Inch)0.3150"
Cutting Width Maximum (mm)8.00mm
Insert Length (Decimal Inch)1.1811"
Insert Length (mm)30.00mm
Corner Radius (Inch)0.020"
Corner Radius (mm)0.50mm
Thickness (Inch)0.217"
Thickness (mm)5.50mm
ApplicationExternal Grooving
ChipbreakerMG
Coating ProcessPVD
Cutting RangeFinishing Medium
HandNeutral
Insert Holding MethodClamp
Insert GradePR905
Insert Size8030050
MaterialCarbide
Number of Cutting Edges2
Primary Workpiece MaterialCast Iron (K)
Usage ClassificationLight Interruption
