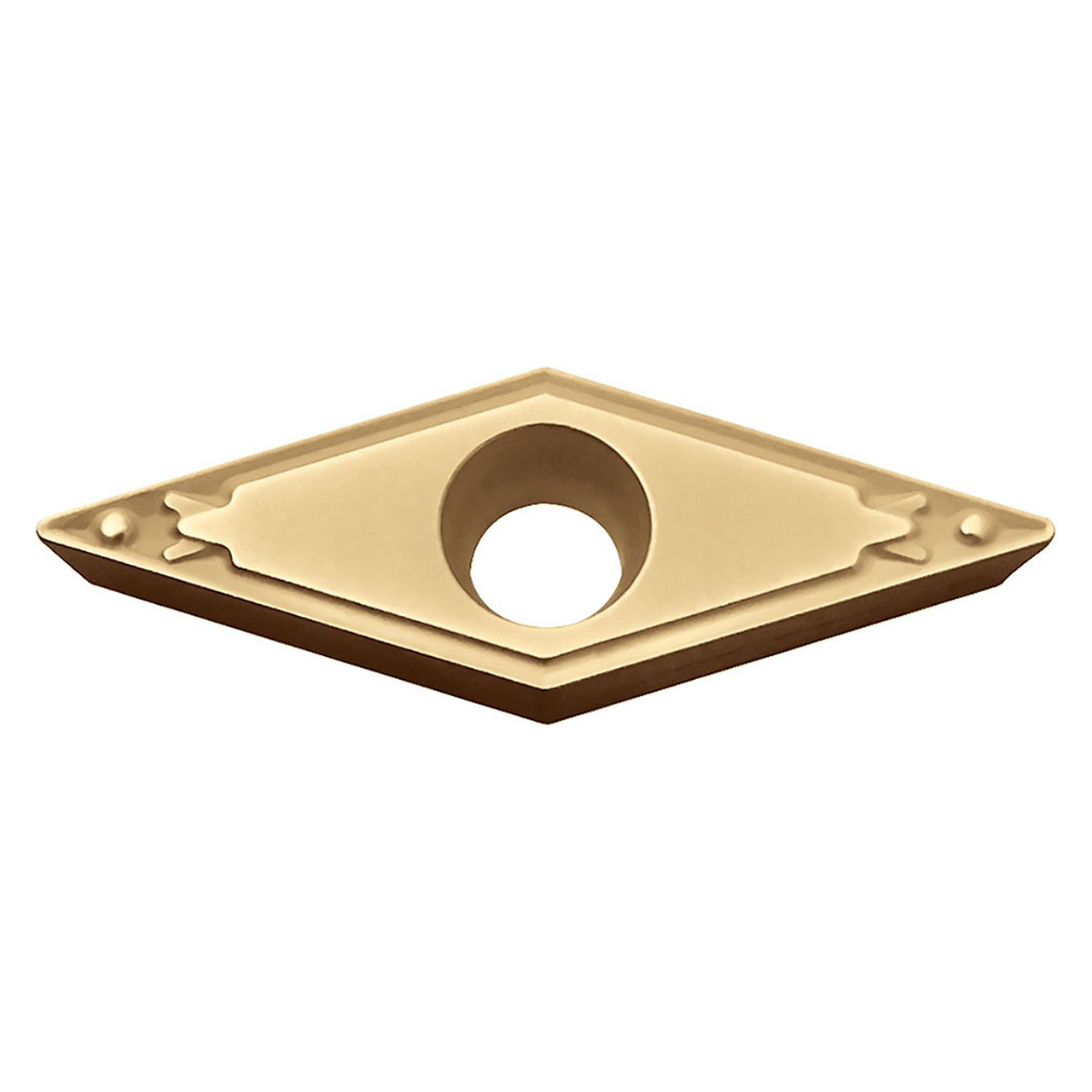

Kyocera Precision Tools TJQ07460 | VBMT331HQ CA5515 3/8" Circle Diameter x 3/16" Thickness CVD Coated Carbide Indexable Turning Insert

$30.44 $17.66
(You save $12.78)
Brand:
Kyocera Precision Tools
Insert Style:
VBMT
Insert Size:
331
Material:
Carbide;Inscribed Circle (Inch)=3/8"""
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.525mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1874"
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0157"
Corner Radius (mm):
0.40mm
Manufacturer's Grade:
CA5515
interval quantity:
10
SKU:
23235968
UPC:
Weight:
0.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Related Products

Features:

  • Insert for external turning, copying, facing, undercutting, profiling, internal facing, back boring
  • 2 Cutting edges
  • Improved wear resistance and longer tool life due to micro columnar structure of coating composition
  • Application: High speed cutting of steel, continuous to light interruption

Product Specifications
EDP NumberTJQ07460
Inscribed Circle (Inch)3/8"
Inscribed Circle (mm)9.525mm
Corner Radius (Inch)1/64"
Corner Radius (mm)0.40mm
Thickness (Inch)3/16"
Thickness (mm)4.76mm
ApplicationBack Boring | Copying | External Turning | Facing | Internal Facing | Profiling | Undercutting
ChipbreakerHQ
Coating ProcessCVD
Cutting RangeFinishing Medium
HandNeutral
Insert GradeCA5515
Insert Holding MethodScrew or Clamp
Insert Shape35 Degree Diamond
Insert Included Angle ( Degree)35 Degree
Insert Size331
MaterialCarbide
Number of Cutting Edges2
Primary Workpiece MaterialCarbon/Alloy Steel (P)
Usage ClassificationContinuous
