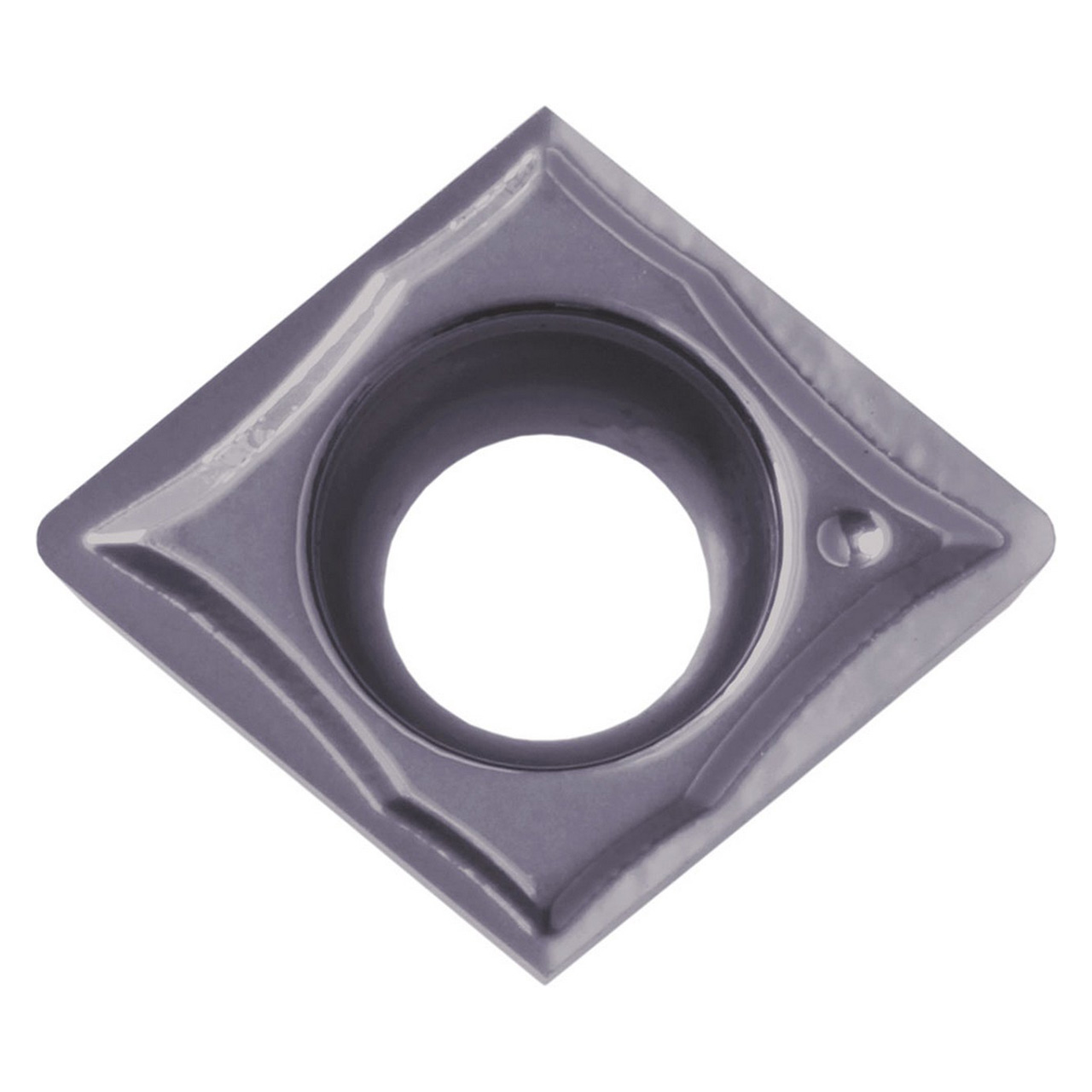

Kyocera Precision Tools TKE01402 | CCGT2151MFPGQ PR1225 1/4" Circle Diameter x 3/32" Thickness PVD Coated Carbide Indexable Turning Insert

$21.36 $12.39
(You save $8.97)
Brand:
Kyocera Precision Tools
Insert Style:
CCGT
Insert Size:
2151
Material:
Carbide;Inscribed Circle (Inch)=1/4"""
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0937"
Thickness (mm):
2.38mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0157"
Corner Radius (mm):
0.40mm
Manufacturer's Grade:
PR1225
interval quantity:
10
SKU:
23237888
UPC:
Weight:
0.05 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Related Products

Features:

  • Insert for external turning, facing, boring, internal facing, sub-spindle
  • Sharp edge/polished/minus tolerance corner radius with 2 cutting edges
  • Superior wear and oxidation resistant MEGACOAT on micro grain carbide substrate
  • Application: Light interrupted to interrupted cutting of stainless steel

Product Specifications
EDP NumberTKE01402
Inscribed Circle (Inch)1/4"
Inscribed Circle (mm)6.35mm
Corner Radius (Inch)1/64"
Corner Radius (mm)0.40mm
Thickness (Inch)3/32"
Thickness (mm)2.38mm
ApplicationBoring | External Turning | Facing | Internal Facing | Sub-Spindle
ChipbreakerGQ
Coating ProcessPVD
Cutting RangeFinishing Medium
HandNeutral
Insert GradePR1225
Insert Holding MethodScrew or Clamp
Insert Shape80 Degree Diamond
Insert Included Angle ( Degree)80 Degree
Insert Size2151
MaterialCarbide
Number of Cutting Edges2
Primary Workpiece MaterialStainless Steel (M)
Usage ClassificationLight Interruption
