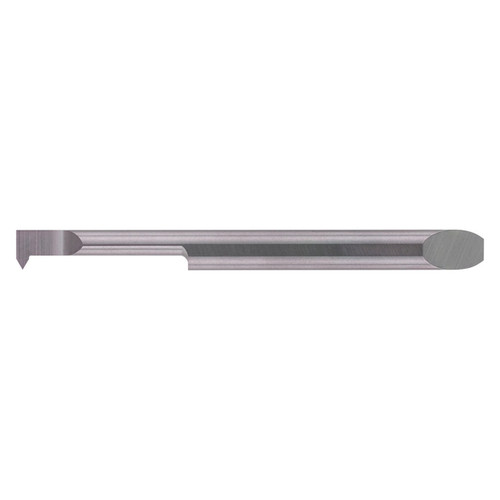

Kyocera Precision Tools TKE15240 | VNTR04511 PR1225 " Diameter x 0.1535" Shank Height PVD Coated Carbide Micro Threading Bar

$34.86
Brand:
Kyocera Precision Tools
Material:
Carbide;Tool Bit Style=VNT"
Type:
Internal;Shank Height (Decimal Inch)=0.1535"""
Shank Height (mm):
3.90mm
Overall Length (Decimal Inch):
0.4331"
Overall Length (mm):
11.00mm
SKU:
23238304
Weight:
0.14 LBS
Minimum Purchase:
5 units
Shipping:
Calculated at Checkout

Features:

  • PR1225 grade micro threading Tip-Bar for steel
  • Minimum bore diameter 4.50mm
  • Compatible with SVNR, SVNSR.S-SVNRholders

Product Specifications
EDP NumberTKE15240
Shank Width (Decimal Inch)0.6299"
Minimum Bore Diameter (Decimal Inch)0.1772"
Minimum Bore Diameter (mm)4.50mm
Shank Height (Decimal Inch)0.1535"
Shank Height (mm)3.90mm
Usable Length (Decimal Inch)0.4331"
Usable Length (mm)11.00mm
Corner Radius (Decimal Inch)0.002"
Corner Radius (mm)0.05mm
ApplicationMicro Internal Threading
Coating ProcessPVD
Coolant Through (Yes/No)PVD
HandRight Hand
Insert GradePR1225
Insert Holding MethodScrew
MaterialCarbide
Primary Workpiece MaterialStainless Steel (M)
Thread TypeInternal

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
