Features:

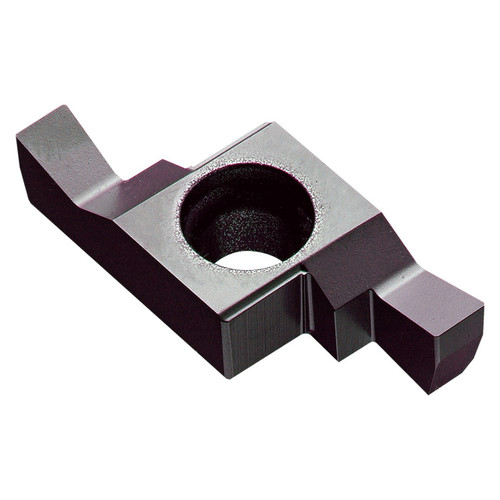

- Insert for internal grooving
- 2-Edge/molded chipbreaker
- 2 Cutting edges
- Superior wear and oxidation resistant MEGACOAT on micro grain carbide substrate
- Application: Light interrupted to interrupted cutting of stainless steel
Product Specifications
| Tool Number | TKE17268 |
| Max Depth of Cut (Decimal Inch) | 0.1772" |
| Max Depth of Cut (mm) | 4.50mm |
| Cutting Width (Decimal Inch) | 0.1181" |
| Cutting Width (mm) | 3.00mm |
| Cutting Width Minimum (Decimal Inch) | 0.1181" |
| Cutting Width Minimum (mm) | 3.00mm |
| Cutting Width Maximum (Decimal Inch) | 0.1181" |
| Cutting Width Maximum (mm) | 3.00mm |
| Insert Length (Decimal Inch) | 0.8528" |
| Insert Length (mm) | 21.66mm |
| Corner Radius (Inch) | 0.008" |
| Corner Radius (mm) | 0.20mm |
| Thickness (Inch) | 7/32" |
| Thickness (mm) | 5.56mm |
| Application | Internal Grooving |
| Chipbreaker | M |
| Coating Process | PVD |
| Coolant Through (Yes/No) | PVD |
| Cutting Range | Medium Roughing |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Insert Grade | PR1225 |
| Insert Size | 300020 |
| Material | Carbide |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Steel (P) |
| Usage Classification | Continuous |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
GE
Insert Size:
300020
Material:
Carbide;Cutting Width (Decimal Inch)=0.1181"""
Cutting Width (mm):
3.00mm
Maximum Depth of Cut (Decimal Inch):
0.1772"
Maximum Depth of Cut (mm):
4.50mm
Manufacturer's Grade:
PR1225
Finish/Coating:
PVD
