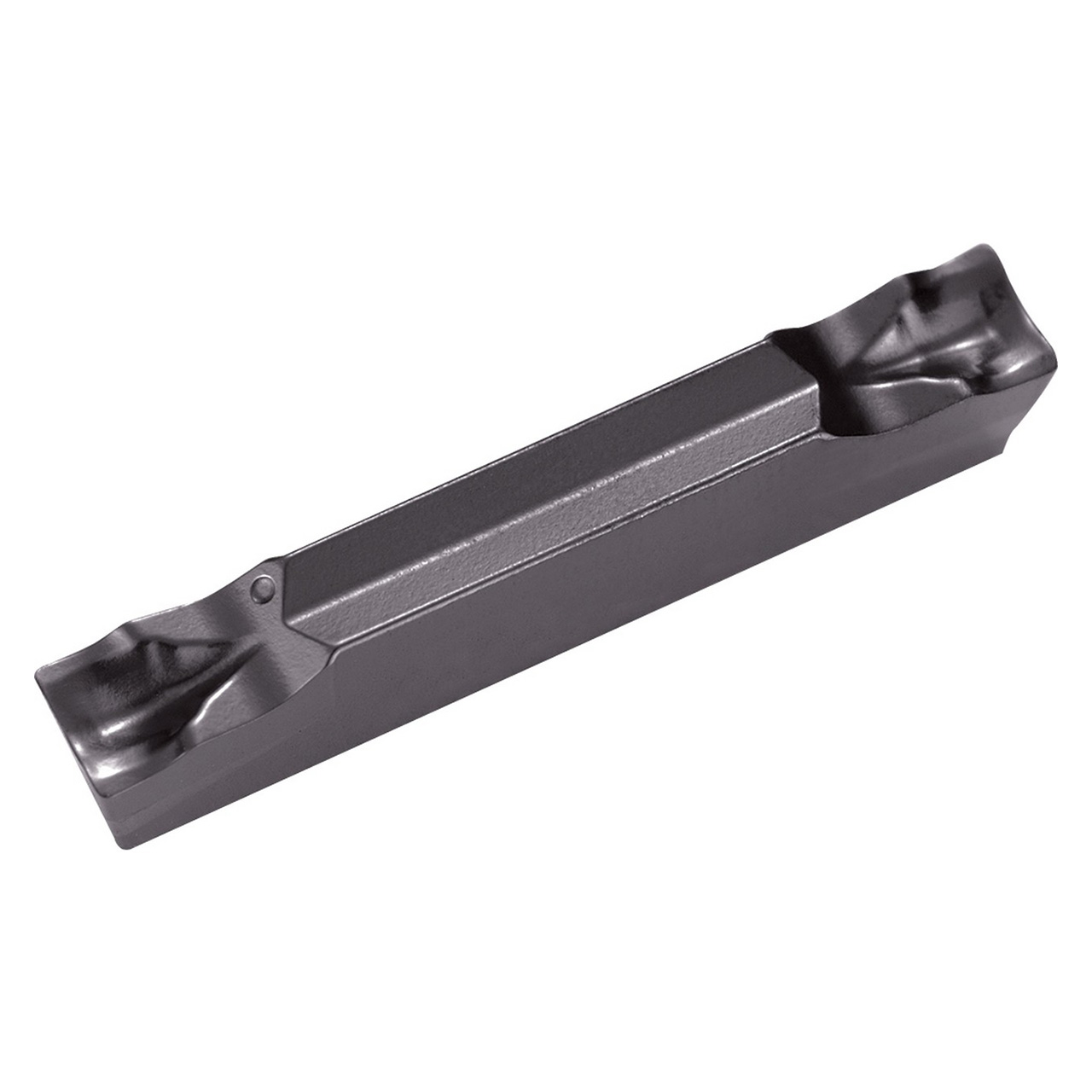

Features:
- Insert for Cut-Off
- 2-edge
- 2 Cutting edges
- Superior wear and oxidation-resistant MEGACOAT on micro-grain carbide substrate
- Application: Superior adhesion resistance and longer tool life for steel and stainless steel machining
Product Specifications
| Tool Number | TKH10523 |
| Cutting Width (Decimal Inch) | 0.0984" |
| Cutting Width (mm) | 2.50mm |
| Cutting Width Minimum (Decimal Inch) | 0.0984" |
| Cutting Width Minimum (mm) | 2.50mm |
| Cutting Width Maximum (Decimal Inch) | 0.0984" |
| Cutting Width Maximum (mm) | 2.50mm |
| Insert Length (Decimal Inch) | 0.7874" |
| Insert Length (mm) | 20.00mm |
| Corner Radius (Inch) | 0.008" |
| Corner Radius (mm) | 0.20mm |
| Thickness (Inch) | 0.169" |
| Thickness (mm) | 4.30mm |
| Application | Cut-Off |
| Chipbreaker | PM |
| Coating Process | PVD |
| Cutting Range | Medium |
| Hand | Neutral |
| Insert Holding Method | Clamp |
| Insert Grade | PR1215 |
| Insert Size | 2520 |
| Material | Carbide |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Steel (P) |
| Usage Classification | Light Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Material:
Carbide;Insert Style=GDM"
Insert Size:
2520
Lead Angle Direction:
Neutral
Cutting Width (Decimal Inch):
0.0984"
Cutting Width (mm):
2.50mm
Manufacturer's Grade:
PR1215
Series:
KGD
