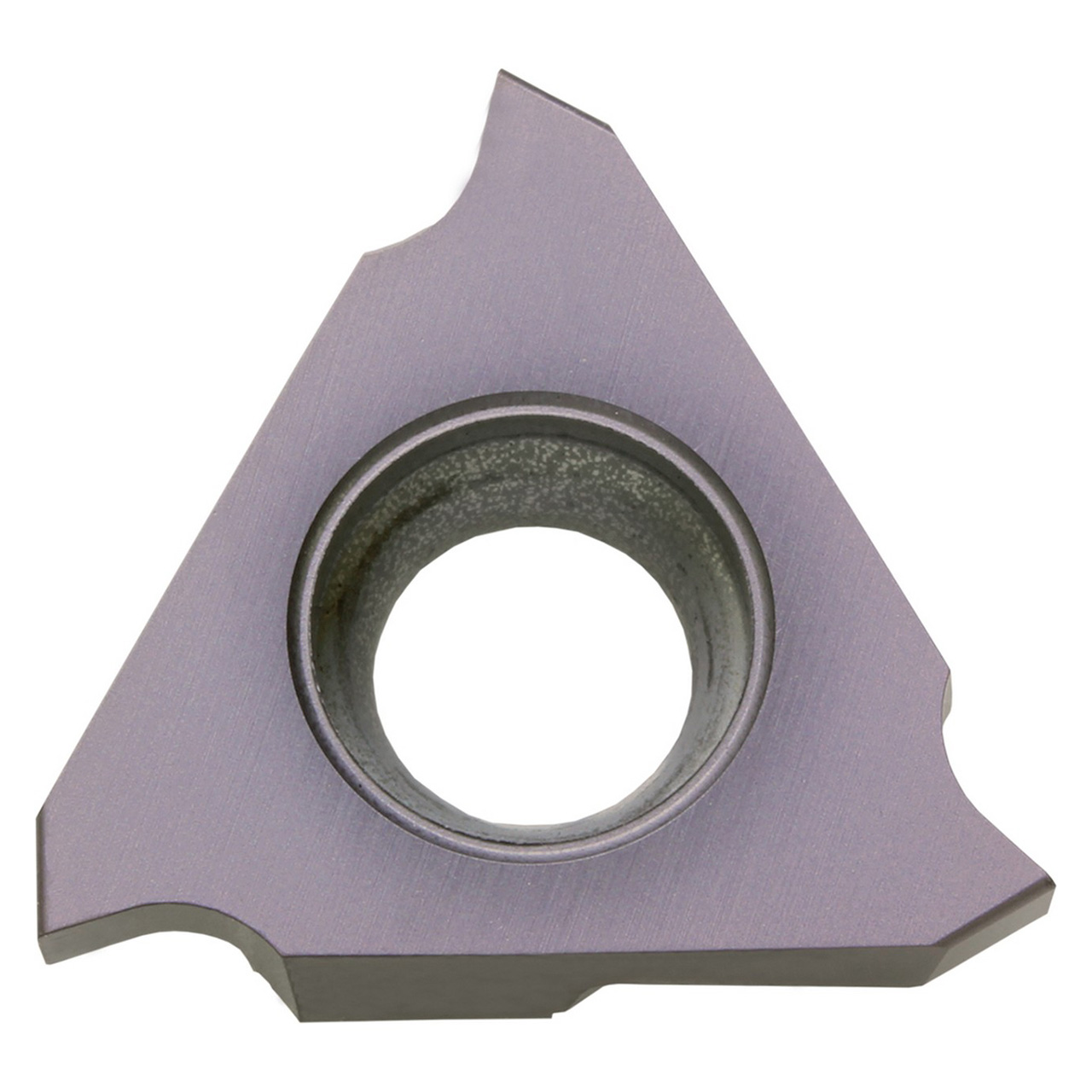

Kyocera Precision Tools TKH17203 | GBA43L125020 PR1215 0.0492" Cutting Width x 3/16" Thickness PVD Coated Carbide Grooving Insert

$23.02
Brand:
Kyocera Precision Tools
Insert Style:
GBA
Insert Size:
43
Material:
Carbide;Cutting Width (Decimal Inch)=0.0492"""
Cutting Width (mm):
1.25mm
Maximum Depth of Cut (Decimal Inch):
0.0787"
Maximum Depth of Cut (mm):
2.00mm
Manufacturer's Grade:
PR1215
Finish/Coating:
PVD
SKU:
23238820
Weight:
0.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

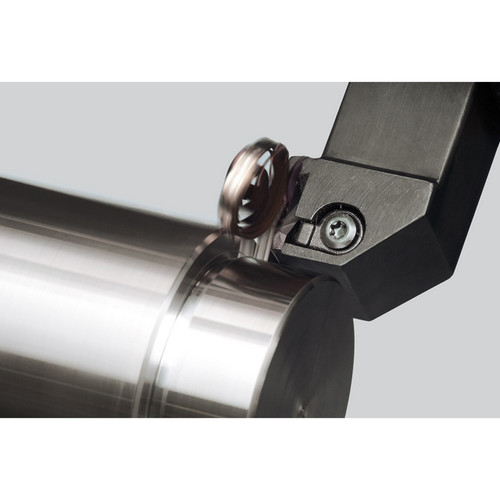

  • Insert for external grooving
  • 3 Cutting edges
  • Superior wear and oxidation-resistant MEGACOAT on micro-grain carbide substrate
  • Application: Superior adhesion-resistant and long tool life for steel and stainless steel cutting

Product Specifications
Tool NumberTKH17203
Max Depth of Cut (Decimal Inch)0.0787"
Max Depth of Cut (mm)2.00mm
Cutting Width (Decimal Inch)0.0492"
Cutting Width (mm)1.25mm
Cutting Width Minimum (Decimal Inch)0.0492"
Cutting Width Minimum (mm)1.25mm
Cutting Width Maximum (Decimal Inch)0.0492"
Cutting Width Maximum (mm)1.25mm
Inscribed Circle (Inch)1/2"
Inscribed Circle (mm)12.70mm
Corner Radius (Inch)0.008"
Corner Radius (mm)0.20mm
Thickness (Inch)3/16"
Thickness (mm)4.76mm
ApplicationExternal Grooving
Coating ProcessPVD
Coolant Through (Yes/No)Uncoated
Cutting RangeMedium
HandLeft Hand
Insert Holding MethodScrew or Clamp
Insert GradePR1215
Insert Size43
MaterialCarbide
Number of Cutting Edges3
Primary Workpiece MaterialSteel (P)
Usage ClassificationContinuous
