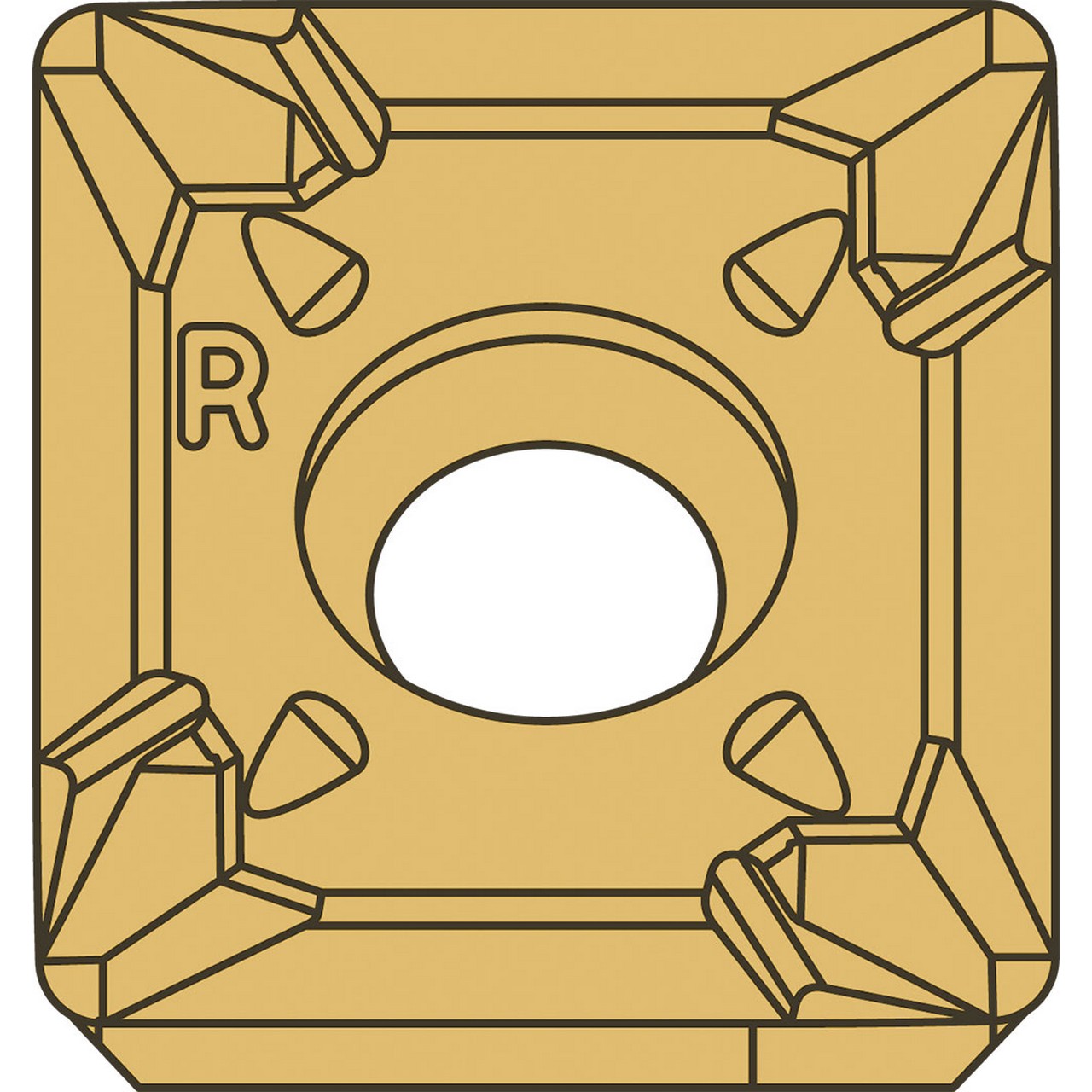

Kyocera Precision Tools TKJ05503 | SPCT10T308ERSD PR0725 0.394" Circle Diameter x 5/32" Thickness PVD Coated Carbide Milling Insert

$32.77 $19.01
(You save $13.76)
Brand:
Kyocera Precision Tools
Insert Size:
10T308
Material:
Carbide;Finish/Coating=PVD
Inscribed Circle (Decimal Inch):
0.3900"
Inscribed Circle (mm):
10.00mm
Thickness (Decimal Inch):
0.1600"
Thickness (mm):
3.97mm
interval quantity:
10
SKU:
23239201
UPC:
Weight:
0.11 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout
  • Insert for slot milling
  • Honed edge / Wiper Edge with 4 cutting edges
  • TiN+TiCN+TiN based multi-layer PVD coated carbide
  • Application: For carbon steel, alloy steel, stainless steel, heat-resistant alloy, and cast iron
  • For medium speed machining

Product Specifications
EDP NumberTKJ05503
Insert Included Angle (Degree)90 Degree
Inscribed Circle (Inch)0.394"
[IC] Inscribed Circle (mm)10.00mm
[RE] Corner Radius (Inch)1/32"
[RE] Corner Radius (mm)0.80mm
[S] Thickness (Inch)5/32"
[S] Thickness (mm)3.97mm
ApplicationSlot Milling
ChipbreakerER-SD
Coating ProcessPVD

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
