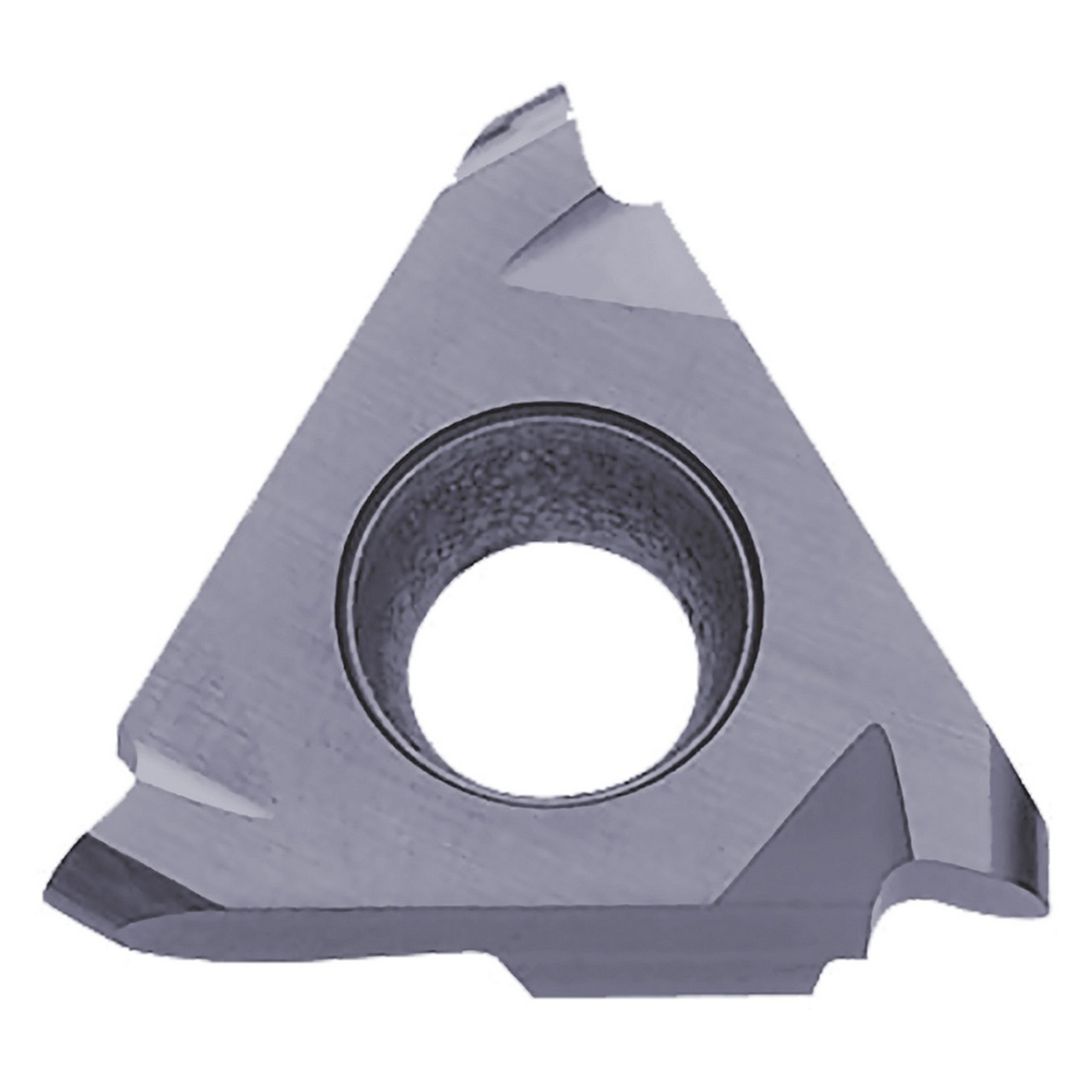

Kyocera Precision Tools TKT06600 | GBA43R100050R PR930 0.0394" Cutting Width x 3/16" Thickness PVD Coated Carbide Grooving Insert

$71.70 $41.59
(You save $30.11)
Brand:
Kyocera Precision Tools
Insert Style:
GBA
Insert Size:
43
Material:
Carbide;Cutting Width (Decimal Inch)=0.0394"
Cutting Width (mm):
1.00mm
Maximum Depth of Cut (Decimal Inch):
0.0787"
Maximum Depth of Cut (mm):
2.00mm
Manufacturer's Grade:
PR930
Finish/Coating:
PVD
interval quantity:
10
SKU:
23239971
UPC:
Weight:
0.28 LBS
Minimum Purchase:
10 units
Shipping:
Free Shipping

Related Products

Features:

  • Insert for external grooving
  • Molded Chipbreaker, Full-R (Round)
  • 3 Cutting edges
  • Hard TiCN base PVD coated super micro-grain carbide
  • Application: Low cutting speed, precise cutting with sharp edge

Product Specifications
Tool NumberTKT06600
Max Depth of Cut (Decimal Inch)0.0787"
Max Depth of Cut (mm)2.00mm
Cutting Width (Decimal Inch)0.0394"
Cutting Width (mm)1.00mm
Cutting Width Minimum (Decimal Inch)0.0394"
Cutting Width Minimum (mm)1.00mm
Cutting Width Maximum (Decimal Inch)0.0394"
Cutting Width Maximum (mm)1.00mm
Inscribed Circle (Inch)1/2"
Inscribed Circle (mm)12.70mm
Corner Radius (Inch)0.020"
Corner Radius (mm)0.50mm
Thickness (Inch)3/16"
Thickness (mm)4.76mm
ApplicationExternal Grooving
ChipbreakerR
Coating ProcessPVD
Cutting RangeFinishing Medium
Full RadiusYes
HandRight Hand
Insert Holding MethodScrew or Clamp
Insert GradePR930
Insert Size43
MaterialCarbide
Number of Cutting Edges3
Primary Workpiece MaterialSteel (P)
Usage ClassificationLight Interruption
