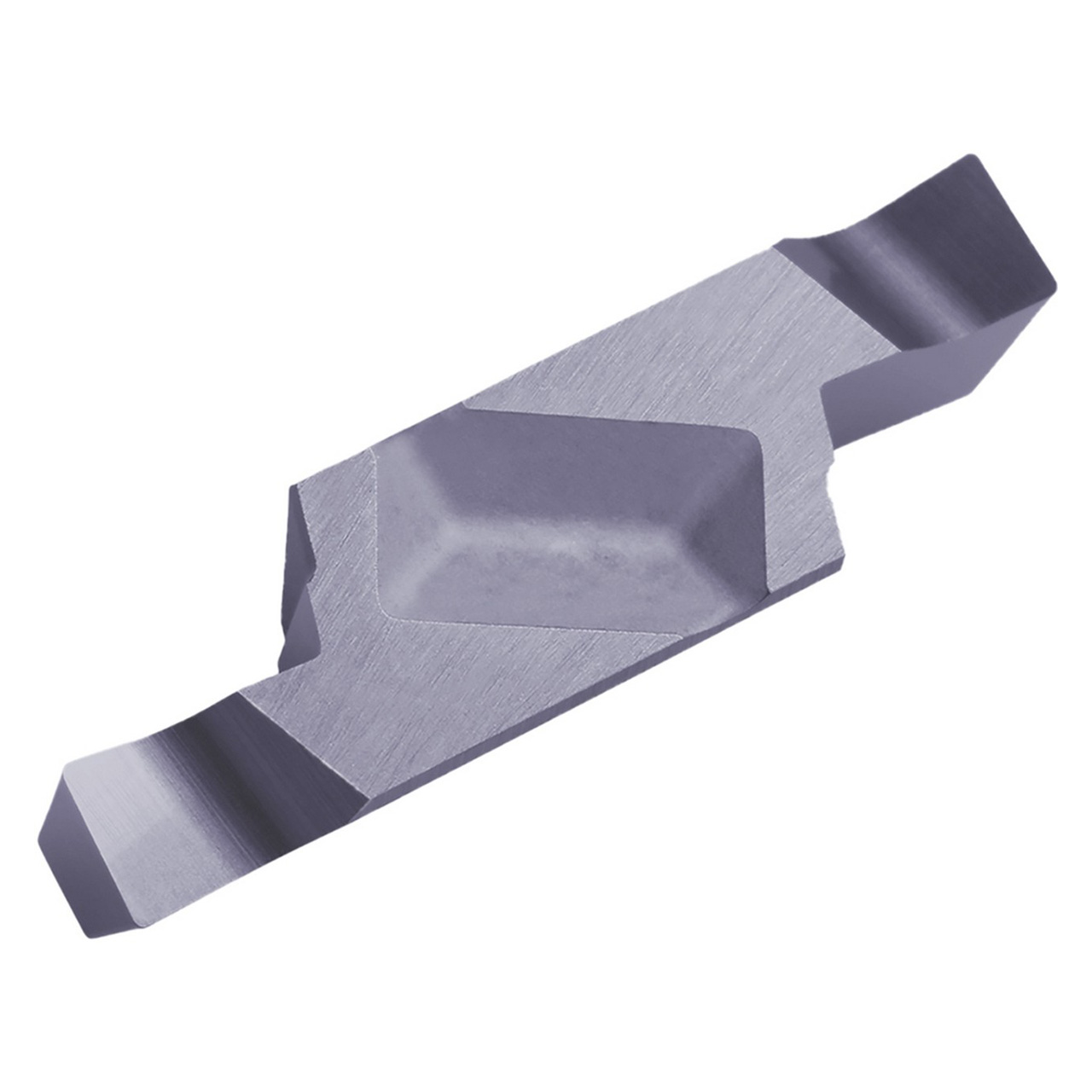

Features:
- Insert for face grooving
- 2 Cutting edges
- Hard TiCN base PVD coated super micro-grain carbide
- Application: Low cutting speed, precise cutting with sharp edge
Product Specifications
| Tool Number | TKT08610 |
| Max Depth of Cut (Decimal Inch) | 0.2677" |
| Max Depth of Cut (mm) | 6.80mm |
| Cutting Width (Decimal Inch) | 0.1575" |
| Cutting Width (mm) | 4.00mm |
| Cutting Width Minimum (Decimal Inch) | 0.1575" |
| Cutting Width Minimum (mm) | 4.00mm |
| Cutting Width Maximum (Decimal Inch) | 0.1575" |
| Cutting Width Maximum (mm) | 4.00mm |
| Insert Length (Decimal Inch) | 1.0630" |
| Insert Length (mm) | 27.00mm |
| Corner Radius (Inch) | 1/64" |
| Corner Radius (mm) | 0.40mm |
| Thickness (Inch) | 0.276" |
| Thickness (mm) | 7.00mm |
| Application | Face Grooving |
| Chipbreaker | C |
| Coating Process | PVD |
| Cutting Range | Finishing Medium |
| Hand | Right Hand |
| Insert Holding Method | Clamp |
| Insert Grade | PR930 |
| Insert Size | 400 |
| Material | Carbide |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Steel (P) |
| Usage Classification | Light Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
GVF
Insert Size:
400
Material:
Carbide;Cutting Width (Decimal Inch)=0.1575"""
Cutting Width (mm):
4.00mm
Maximum Depth of Cut (Decimal Inch):
0.2677"
Maximum Depth of Cut (mm):
6.80mm
Manufacturer's Grade:
PR930
Finish/Coating:
PVD
