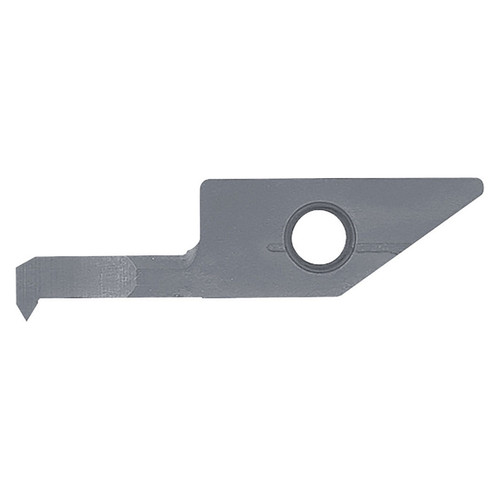

Kyocera Precision Tools TKT09420 | VNTR04511 PR930 " Diameter x 0.1535" Shank Height PVD Coated Carbide Micro Threading Bar

$71.86 $41.68
(You save $30.18)
Brand:
Kyocera Precision Tools
Material:
Carbide;Tool Bit Style=VNT"
Type:
Internal;Shank Height (Decimal Inch)=0.1535"
Shank Height (mm):
3.90mm
Overall Length (Decimal Inch):
0.4331"
Overall Length (mm):
11.00mm
interval quantity:
5
SKU:
23240150
UPC:
Weight:
0.25 LBS
Minimum Purchase:
5 units
Shipping:
Calculated at Checkout

Features:

  • PR930 grade micro threading Tip-Bar for steel
  • Minimum bore diameter 4.50mm
  • Compatible with SVNR, SVNSR.S-SVNRholders

Product Specifications
EDP NumberTKT09420
Shank Width (Decimal Inch)0.4724"
Minimum Bore Diameter (Decimal Inch)0.1772"
Minimum Bore Diameter (mm)4.50mm
Shank Height (Decimal Inch)0.1535"
Shank Height (mm)3.90mm
Usable Length (Decimal Inch)0.4331"
Usable Length (mm)11.00mm
Corner Radius (Decimal Inch)0.002"
Corner Radius (mm)0.05mm
ApplicationMicro Internal Threading
Coating ProcessPVD
HandRight Hand
Insert GradePR930
Insert Holding MethodScrew
MaterialCarbide
Primary Workpiece MaterialSteel (P)
Thread TypeInternal

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
