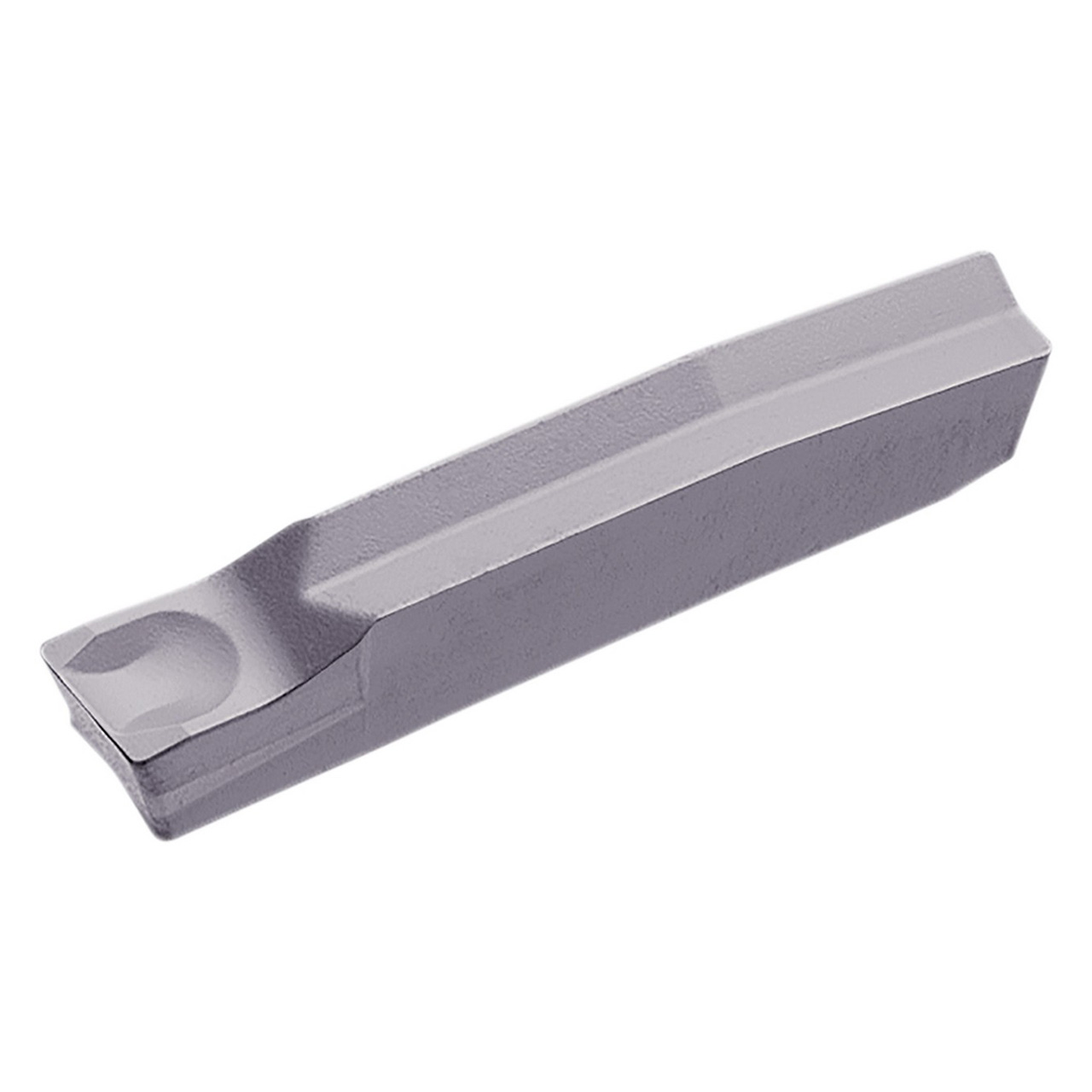

Kyocera Precision Tools TKT13261 | GMR4TK8D PR930 0.1575" Cutting width x 0.7874" Insert Length PVD Coated Carbide Grooving Insert

$15.72
Brand:
Kyocera Precision Tools
Insert Style:
GM
Insert Size:
4
Material:
Carbide;Cutting Width (Decimal Inch)=0.1575"""
Cutting Width (mm):
4.00mm
Maximum Depth of Cut (Decimal Inch):
0.9843"
Maximum Depth of Cut (mm):
25.00mm
Manufacturer's Grade:
PR930
Finish/Coating:
PVD
SKU:
23240298
Weight:
0.16 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for deep grooving, cut-off
  • Cut-off/stability oriented/1-edge with lead angle
  • 1 Cutting edge
  • Hard TiCN base PVD coated super micro-grain carbide
  • Application: Low cutting speed, precise cutting with sharp edge

Product Specifications
Tool NumberTKT13261
Max Depth of Cut (Decimal Inch)0.9843"
Max Depth of Cut (mm)25.00mm
Cutting Width (Decimal Inch)0.1575"
Cutting Width (mm)4.00mm
Cutting Width Minimum (Decimal Inch)0.1575"
Cutting Width Minimum (mm)4.00mm
Cutting Width Maximum (Decimal Inch)0.1575"
Cutting Width Maximum (mm)4.00mm
Insert Length (Decimal Inch)0.7874"
Insert Length (mm)20.00mm
Corner Radius (Inch)0.012"
Corner Radius (mm)0.30mm
Thickness (Inch)0.169"
Thickness (mm)4.30mm
ApplicationCut-Off | External Deep Grooving | External Grooving
ChipbreakerTK
Coating ProcessPVD
Cutting RangeFinishing Medium
HandRight Hand
Insert Holding MethodClamp
Insert GradePR930
Insert Size4
MaterialCarbide
Number of Cutting Edges1
Primary Workpiece MaterialSteel (P)
Usage ClassificationLight Interruption
