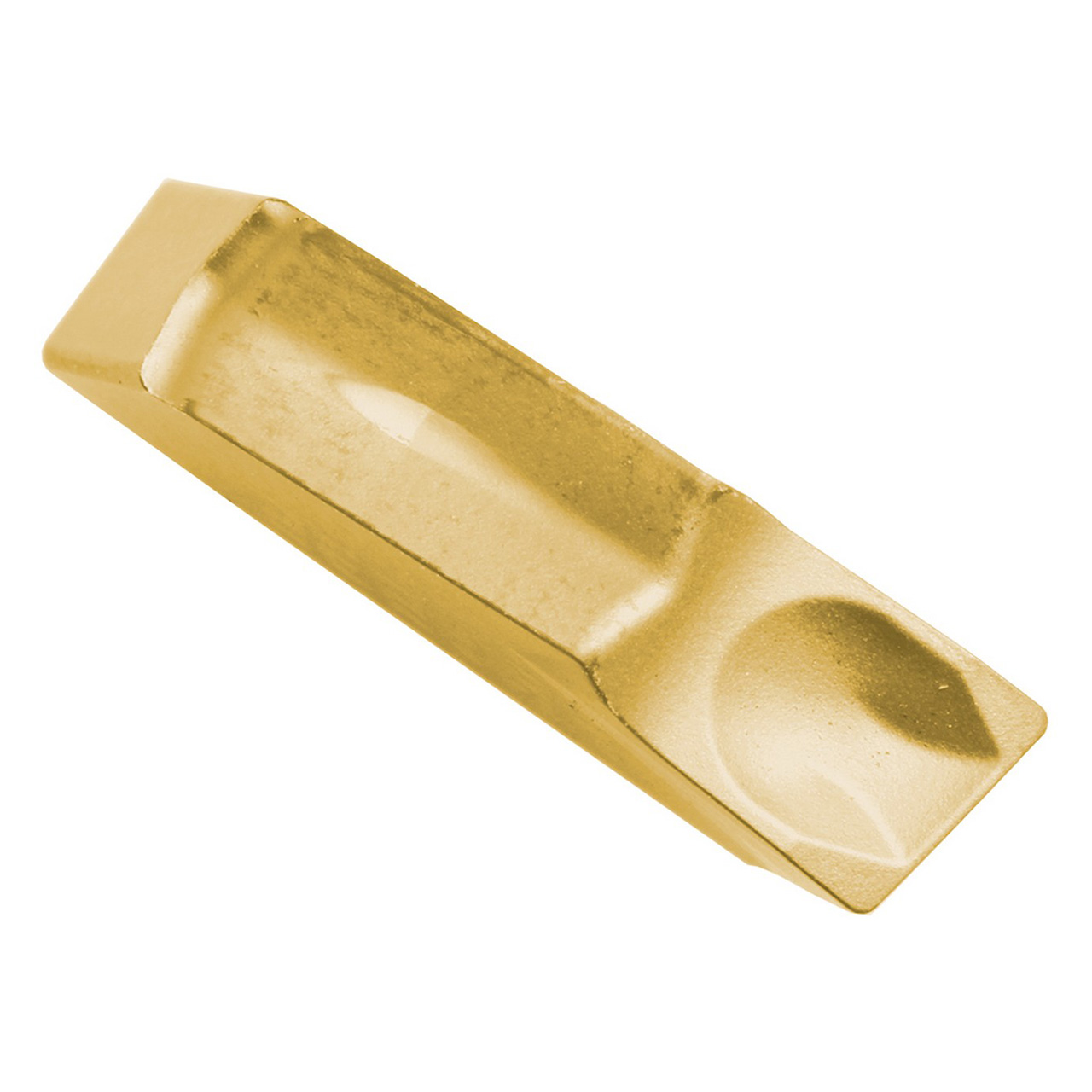

Kyocera Precision Tools TKW15202 | TKL4 CR9025 0.1614" Cutting Width x 0.012" Radius CVD Coated Carbide Cut-Off Insert

$14.85
Brand:
Kyocera Precision Tools
Material:
Carbide;Insert Style=TK"
Insert Size:
4
Lead Angle Direction:
Left-Hand
Cutting Width (Decimal Inch):
0.1614"
Cutting Width (mm):
4.10mm
Manufacturer's Grade:
CR9025
Series:
KTKC
SKU:
23240492
Weight:
0.08 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for Cut-Off
  • 8 Degree lead angle
  • 1 Cutting edge
  • Improved toughness and stability due to specialized carbide substrate with plastic deformation resistance
  • Application: Cut-off, grooving and multi-function cutting of steel

Product Specifications
Tool NumberTKW15202
Cutting Width (Decimal Inch)0.1614"
Cutting Width (mm)4.10mm
Cutting Width Minimum (Decimal Inch)0.1614"
Cutting Width Minimum (mm)4.10mm
Cutting Width Maximum (Decimal Inch)0.1614"
Cutting Width Maximum (mm)4.10mm
Corner Radius (Inch)0.012"
Corner Radius (mm)0.30mm
ApplicationCut-Off
Coating ProcessCVD
Cutting RangeFinishing Medium
HandLeft Hand
Insert Holding MethodSelf Clamp
Insert GradeCR9025
Insert Size4
MaterialCarbide
Number of Cutting Edges1
Primary Workpiece MaterialSteel (P)
Usage ClassificationLight Interruption
