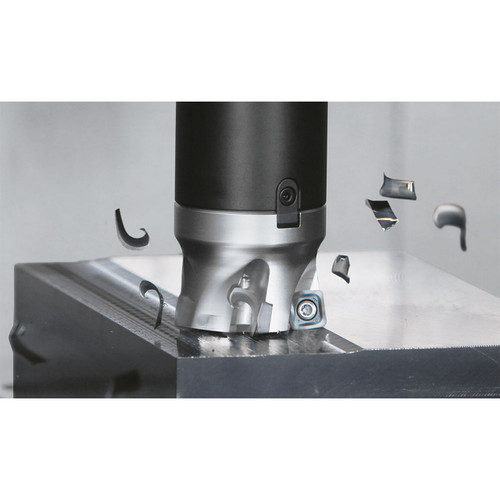

- Insert for high feed, facing, shouldering, slotting, pocketing, ramping, helical milling, plunging
- Honed edge/tough edge (Heavy milling )
- MEGACOAT NANO coating technology
- Nano thin multi-layer coating performs with wear resistance and high oxidation resistance
- Application: Stable and long tool life milling of steel and stainless steel
Product Specifications

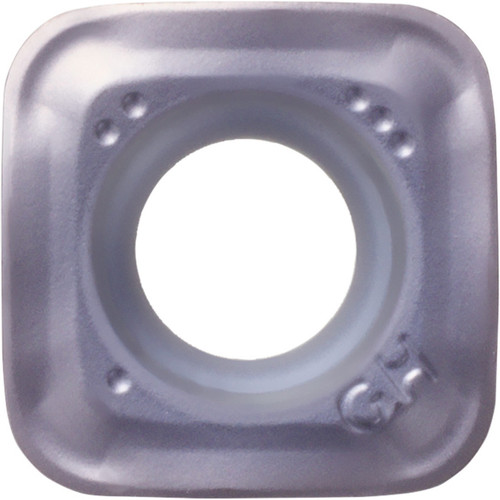

| EDP Number | TLB40005 |
| Insert Included Angle (Degree) | 90 Degree |
| Inscribed Circle (Inch) | 0.558" |
| [IC] Inscribed Circle (mm) | 14.17mm |
| [RE] Corner Radius (Inch) | 5/64" |
| [RE] Corner Radius (mm) | 2.00mm |
| [S] Thickness (Inch) | 7/32" |
| [S] Thickness (mm) | 5.56mm |
| Application | Facing | Helical Milling | High Feed | Plunging | Pocketing | Ramping | Shouldering | Slotting |
| Chipbreaker | ER-GH |
| Coating Process | PVD |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Size:
140520
Material:
Carbide;Finish/Coating=PVD
Inscribed Circle (Decimal Inch):
0.5600"
Inscribed Circle (mm):
14.17mm
Thickness (Decimal Inch):
0.2200"
Thickness (mm):
5.56mm
