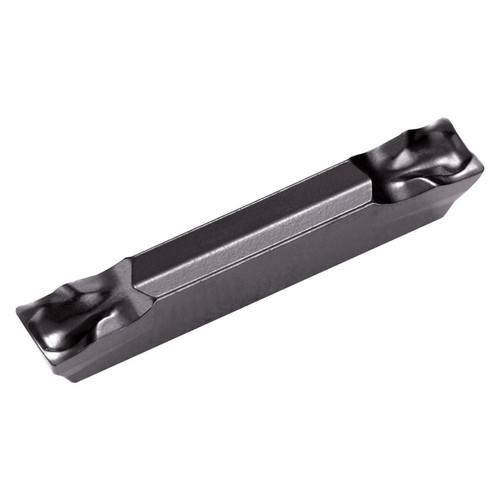

Kyocera Precision Tools TLC10531 | GDM3020R025PM6D PR1535 0.1181" Cutting Width x 0.169" Thickness PVD Coated Carbide Cut-Off Insert

$16.20
Brand:
Kyocera Precision Tools
Material:
Carbide;Insert Style=GDM"
Insert Size:
3020
Lead Angle Direction:
Right-Hand
Cutting Width (Decimal Inch):
0.1181"
Cutting Width (mm):
3.00mm
Manufacturer's Grade:
PR1535
Series:
KGD
SKU:
23242075
Weight:
0.10 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for Cut-Off
  • 6 Degree lead angle / 2-edge
  • 2 Cutting edges
  • Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
  • Application: PVD for titanium alloy and precipitation hardened stainless steel

Product Specifications
Tool NumberTLC10531
Cutting Width (Decimal Inch)0.1181"
Cutting Width (mm)3.00mm
Cutting Width Minimum (Decimal Inch)0.1181"
Cutting Width Minimum (mm)3.00mm
Cutting Width Maximum (Decimal Inch)0.1181"
Cutting Width Maximum (mm)3.00mm
Insert Length (Decimal Inch)0.7874"
Insert Length (mm)20.00mm
Corner Radius (Inch)0.010"
Corner Radius (mm)0.25mm
Thickness (Inch)0.169"
Thickness (mm)4.30mm
ApplicationCut-Off
ChipbreakerPM
Coating ProcessPVD
Cutting RangeMedium Roughing
HandRight Hand
Insert Holding MethodClamp
Insert GradePR1535
Insert Size3020
MaterialCarbide
Number of Cutting Edges2
Primary Workpiece MaterialStainless Steel (M)
Usage ClassificationLight Interruption
