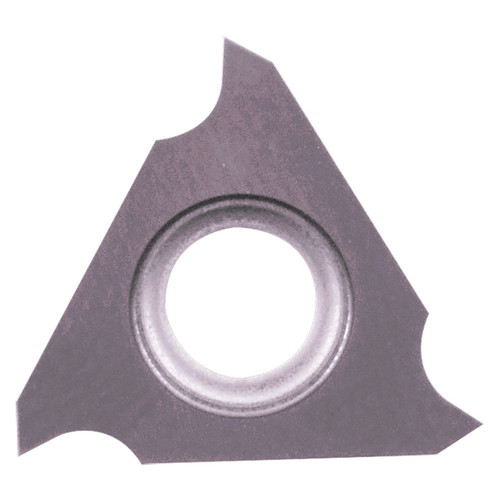

Kyocera Precision Tools TLC19916 | GBF32R080000F PR1535 0.0315" Cutting Width x 1/8" Thickness PVD Coated Carbide Grooving Insert

$21.39
Brand:
Kyocera Precision Tools
Insert Style:
GBF
Insert Size:
080
Material:
Carbide;Cutting Width (Decimal Inch)=0.0315"""
Cutting Width (mm):
0.80mm
Maximum Depth of Cut (Decimal Inch):
0.0787"
Maximum Depth of Cut (mm):
2.00mm
Manufacturer's Grade:
PR1535
Finish/Coating:
PVD
SKU:
23242440
Weight:
0.09 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for external grooving
  • 3 Cutting edges
  • Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
  • Application: PVD for carbon/alloy steel and stainless steel

Product Specifications
Tool NumberTLC19916
Max Depth of Cut (Decimal Inch)0.0787"
Max Depth of Cut (mm)2.00mm
Cutting Width (Decimal Inch)0.0315"
Cutting Width (mm)0.80mm
Cutting Width Minimum (Decimal Inch)0.0315"
Cutting Width Minimum (mm)0.80mm
Cutting Width Maximum (Decimal Inch)0.0315"
Cutting Width Maximum (mm)0.80mm
Inscribed Circle (Inch)3/8"
Inscribed Circle (mm)9.525mm
Thickness (Inch)1/8"
Thickness (mm)3.18mm
ApplicationExternal Grooving
ChipbreakerF
Coating ProcessPVD
Cutting RangeMedium Roughing
HandRight Hand
Insert Holding MethodScrew
Insert GradePR1535
Insert Size080
MaterialCarbide
Number of Cutting Edges3
Primary Workpiece MaterialHeat-Resistant Alloy (S)
Usage ClassificationLight Interruption
