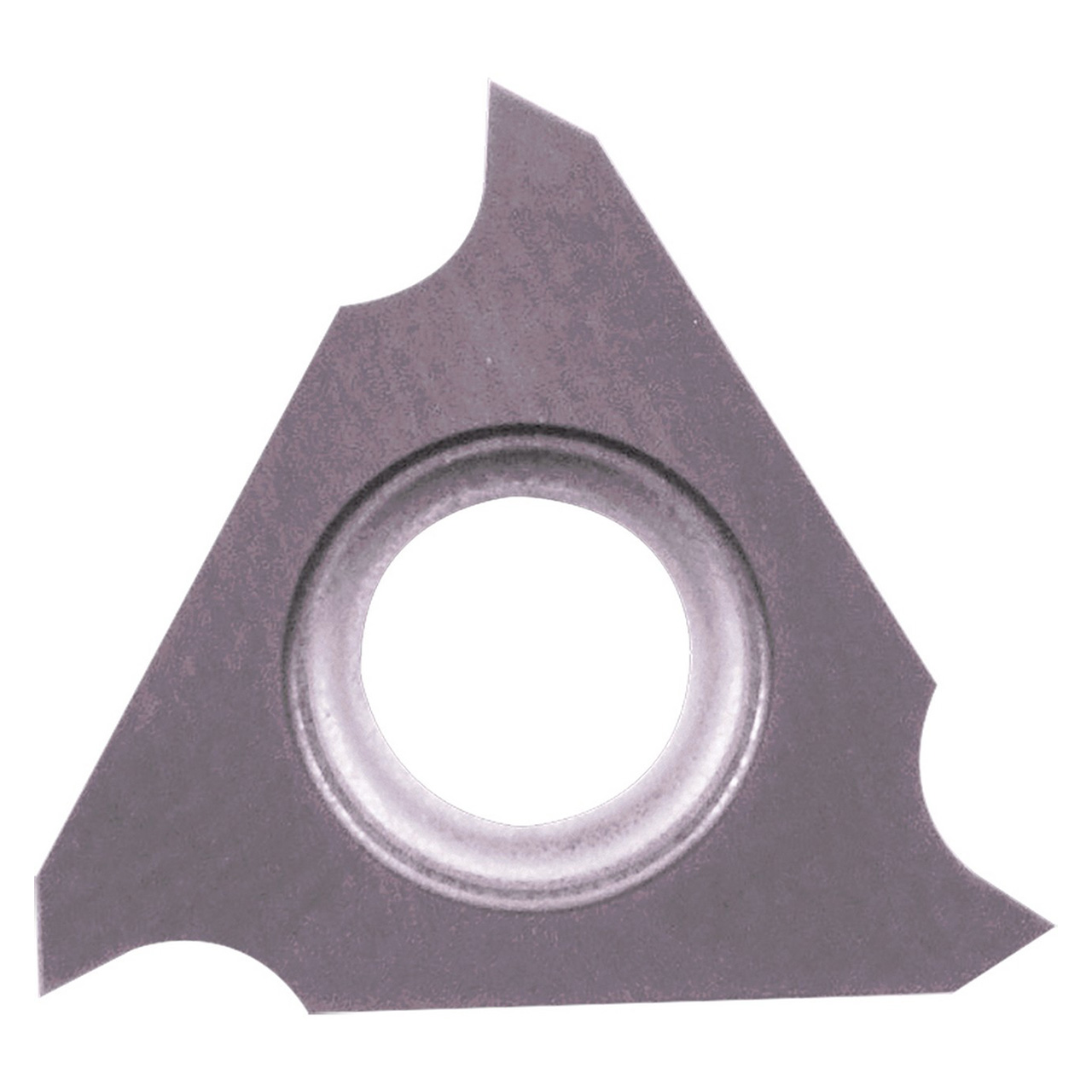

Kyocera Precision Tools TLC19939 | GBF32L170000F PR1535 0.0669" Cutting Width x 1/8" Thickness PVD Coated Carbide Grooving Insert

$44.09 $25.57
(You save $18.52)
Brand:
Kyocera Precision Tools
Insert Style:
GBF
Insert Size:
170
Material:
Carbide;Cutting Width (Decimal Inch)=0.0669"
Cutting Width (mm):
1.70mm
Maximum Depth of Cut (Decimal Inch):
0.1181"
Maximum Depth of Cut (mm):
3.00mm
Manufacturer's Grade:
PR1535
Finish/Coating:
PVD
interval quantity:
10
SKU:
23242463
UPC:
Weight:
0.09 LBS
Minimum Purchase:
10 units
Shipping:
Free Shipping

Related Products

Features:

  • Insert for external grooving
  • 3 Cutting edges
  • Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
  • Application: PVD for carbon/alloy steel and stainless steel

Product Specifications
Tool NumberTLC19939
Max Depth of Cut (Decimal Inch)0.1181"
Max Depth of Cut (mm)3.00mm
Cutting Width (Decimal Inch)0.0669"
Cutting Width (mm)1.70mm
Cutting Width Minimum (Decimal Inch)0.0669"
Cutting Width Minimum (mm)1.70mm
Cutting Width Maximum (Decimal Inch)0.0669"
Cutting Width Maximum (mm)1.70mm
Inscribed Circle (Inch)3/8"
Inscribed Circle (mm)9.525mm
Thickness (Inch)1/8"
Thickness (mm)3.18mm
ApplicationExternal Grooving
ChipbreakerF
Coating ProcessPVD
Cutting RangeMedium Roughing
HandLeft Hand
Insert Holding MethodScrew
Insert GradePR1535
Insert Size170
MaterialCarbide
Number of Cutting Edges3
Primary Workpiece MaterialHeat-Resistant Alloy (S)
Usage ClassificationLight Interruption
