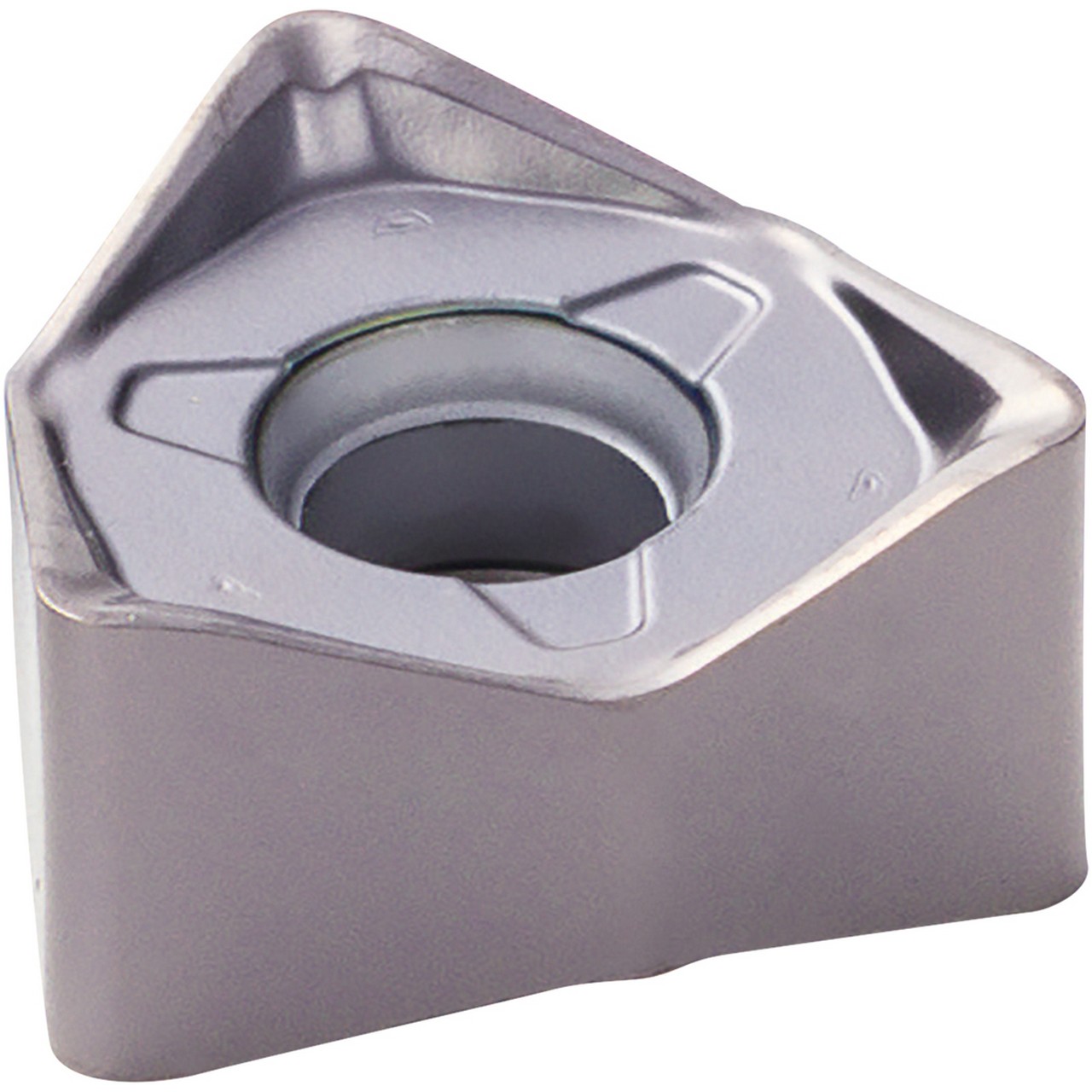

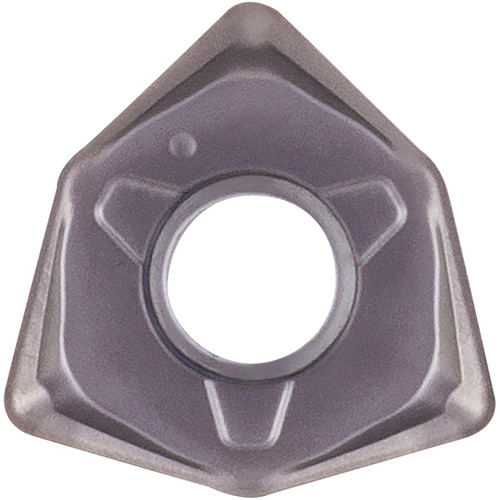

Kyocera Precision Tools TLC40044 | WNMU050408ENGH PR1535 0.346" Circle Diameter x 0.165" Thickness PVD Coated Carbide Milling Insert

$11.29
Brand:
Kyocera Precision Tools
Insert Size:
050408
Material:
Carbide;Finish/Coating=PVD
Inscribed Circle (Decimal Inch):
0.3500"
Inscribed Circle (mm):
8.80mm
Thickness (Decimal Inch):
0.1700"
Thickness (mm):
4.20mm
SKU:
23242557
Weight:
0.10 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout
  • Insert for facing, shouldering, slotting
  • Honed edge/tough edge (Heavy milling ) with 6 cutting edges
  • Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
  • Application: PVD for titanium alloy and precipitation hardened stainless steel

Product Specifications
EDP NumberTLC40044
Insert Included Angle (Degree)80 Degree
Inscribed Circle (Inch)0.346"
[IC] Inscribed Circle (mm)8.80mm
[RE] Corner Radius (Inch)1/32"
[RE] Corner Radius (mm)0.80mm
[S] Thickness (Inch)0.165"
[S] Thickness (mm)4.20mm
ApplicationFacing | Shouldering | Slotting
ChipbreakerEN-GH
Coating ProcessPVD
