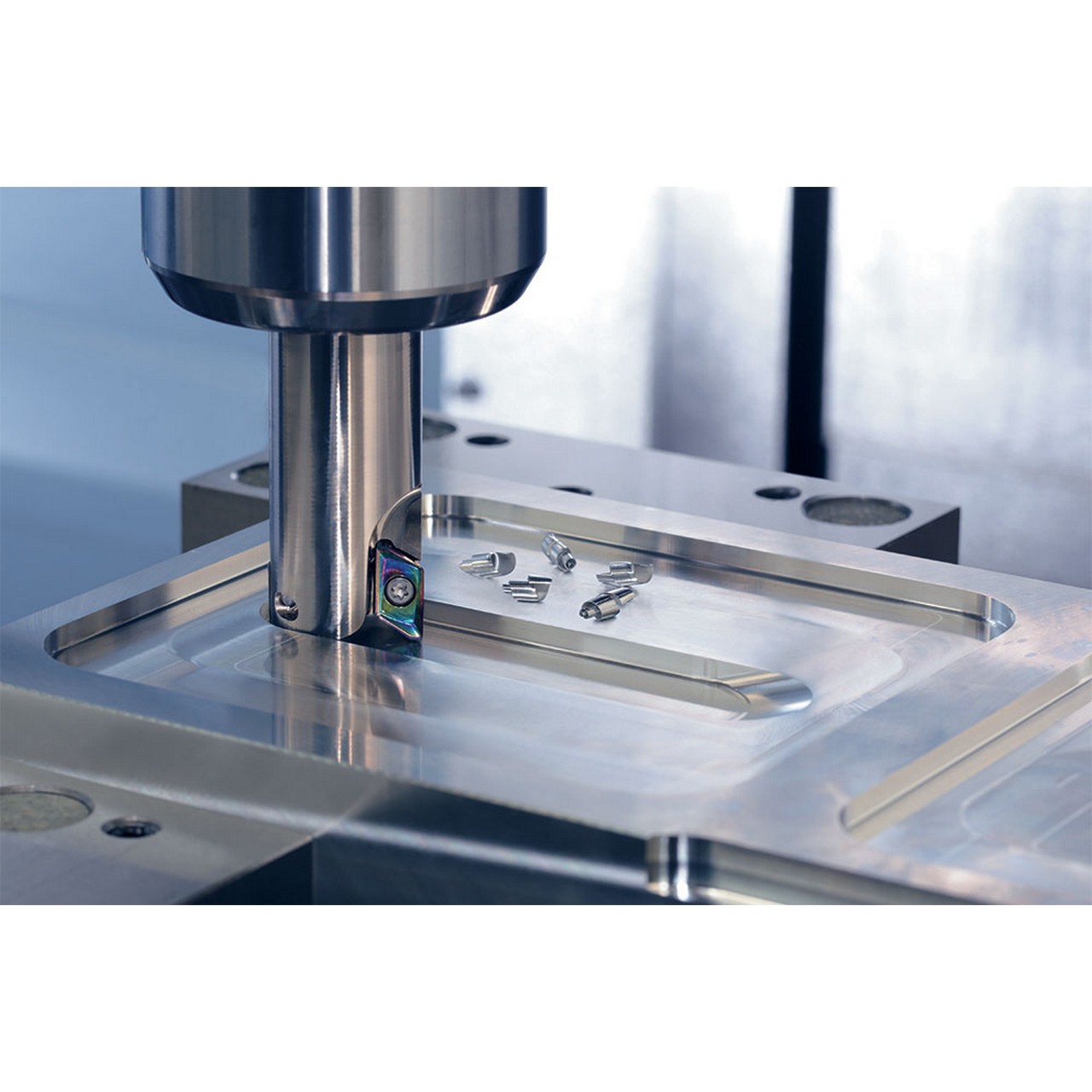

- Insert for facing, shouldering, slotting, contouring, pocketing, ramping, helical milling, plunging
- AM chipbreaker with tough edge
- Hydrogen free DLC coating for high hardness close to that of diamond
- Optimized 2-step rake angle and R honing improve cutting edge strength
Product Specifications
| EDP Number | TLE40002 |
| [RE] Corner Radius (Inch) | 1/64" |
| [RE] Corner Radius (mm) | 0.40mm |
| [S] Thickness (Inch) | 0.201" |
| [S] Thickness (mm) | 5.10mm |
| Application | Contouring | Facing | Helical Milling | Plunging | Pocketing | Ramping | Shouldering | Slotting |
| Chipbreaker | ER-AM |
| Coating Process | DLC |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Size:
130504
Material:
Carbide;Finish/Coating=DLC
Thickness (Decimal Inch):
0.2000"
Thickness (mm):
5.10mm
