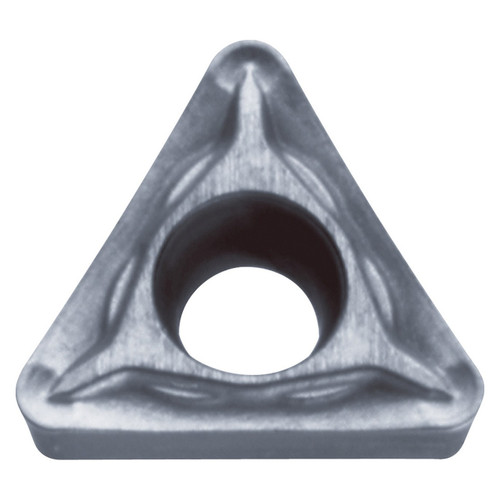

Kyocera Precision Tools TSJ89149 | TCMT18152HP TN60 3/8" Circle Diameter x 1/32" Radius Uncoated Cermet Indexable Drill Insert

$6.33
Brand:
Kyocera Precision Tools
Insert Style:
TCMT
Insert Size:
18152
Material:
Cermet;Manufacturer's Grade=TN60"
Inscribed Circle (Decimal Inch):
0.2200"
Inscribed Circle (mm):
5.56mm
Thickness (Decimal Inch):
0.0900"
Thickness (mm):
2.38mm
Corner Radius (Decimal Inch):
0.0200"
Corner Radius (mm):
0.80mm
SKU:
23249697
Weight:
0.08 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for drilling
  • General purpose cermet with superior wear resistance and toughness
  • Application: Cutting of steel and stainless steel

Product Specifications
Tool NumberTSJ89149
Insert Included Angle (Degree)60
Inscribed Circle (Inch)7/32"
Inscribed Circle (mm)5.56mm
Corner Radius (Inch)1/32"
Corner Radius (mm)0.80mm
Thickness (Inch)3/32"
Thickness (mm)2.38mm
ApplicationDrilling
ChipbreakerHP
Coating ProcessUncoated
HandRight Hand
Insert Holding MethodScrew
Insert GradeTN60
Insert Shape60 Degree Triangle
Insert Size18152
MaterialCermet
Number of Cutting Edges3
Primary Workpiece MaterialCarbon/Alloy Steel (P) |Tool Steel (P) | Non-Ferrous Materials (N)
Usage Classification

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Kyocera Precision Tools
Insert Style:
TCMT
Insert Size:
18152
Material:
Cermet;Manufacturer's Grade=TN60"
Inscribed Circle (Decimal Inch):
0.2200"
Inscribed Circle (mm):
5.56mm
Thickness (Decimal Inch):
0.0900"
Thickness (mm):
2.38mm
Corner Radius (Decimal Inch):
0.0200"
Corner Radius (mm):
0.80mm
