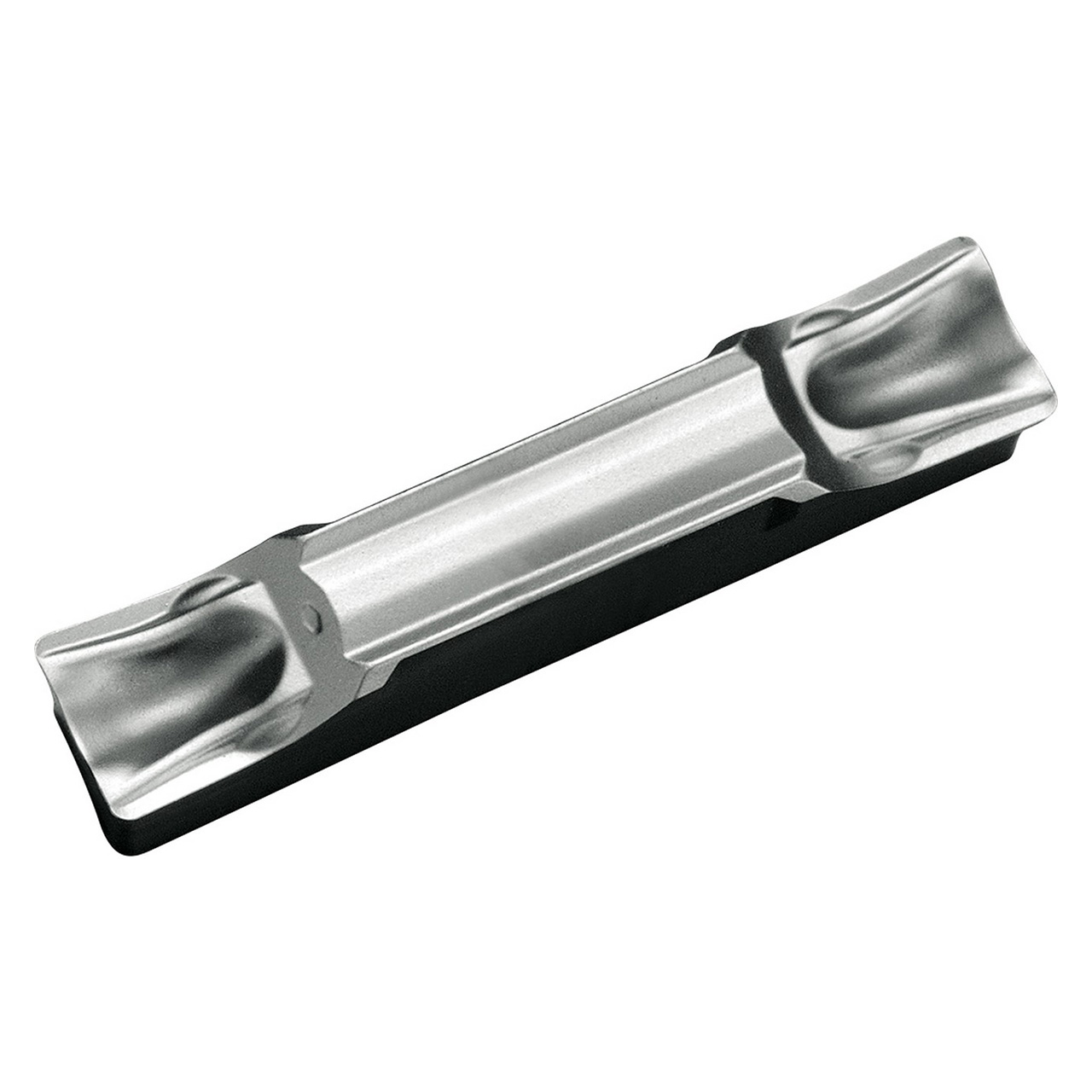

Features:
- Insert for deep grooving, traversing
- 2 Cutting edges
- Cermet with great surface finish eliminates many secondary operations
- Application: For grooving and cut-off of steel
Product Specifications
| Tool Number | TSO10837 |
| Max Depth of Cut (Decimal Inch) | 1.2598" |
| Max Depth of Cut (mm) | 32.00mm |
| Cutting Width (Decimal Inch) | 0.2362" |
| Cutting Width (mm) | 6.00mm |
| Cutting Width Minimum (Decimal Inch) | 0.2362" |
| Cutting Width Minimum (mm) | 6.00mm |
| Cutting Width Maximum (Decimal Inch) | 0.2362" |
| Cutting Width Maximum (mm) | 6.00mm |
| Insert Length (Decimal Inch) | 0.7874" |
| Insert Length (mm) | 20.00mm |
| Corner Radius (Inch) | 1/64" |
| Corner Radius (mm) | 0.40mm |
| Thickness (Inch) | 0.177" |
| Thickness (mm) | 4.50mm |
| Application | Deep Face Grooving | Face Grooving | Traversing |
| Chipbreaker | DM |
| Coating Process | Uncoated |
| Cutting Range | Finishing Medium |
| Hand | Neutral |
| Insert Holding Method | Clamp |
| Insert Grade | TN90 |
| Insert Size | 6020 |
| Material | Cermet |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Steel (P) |
| Usage Classification | Continuous |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
GDFM
Insert Size:
6020
Material:
Cermet;Cutting Width (Decimal Inch)=0.2362"""
Cutting Width (mm):
6.00mm
Maximum Depth of Cut (Decimal Inch):
1.2598"
Maximum Depth of Cut (mm):
32.00mm
Manufacturer's Grade:
TN90
Finish/Coating:
Uncoated
