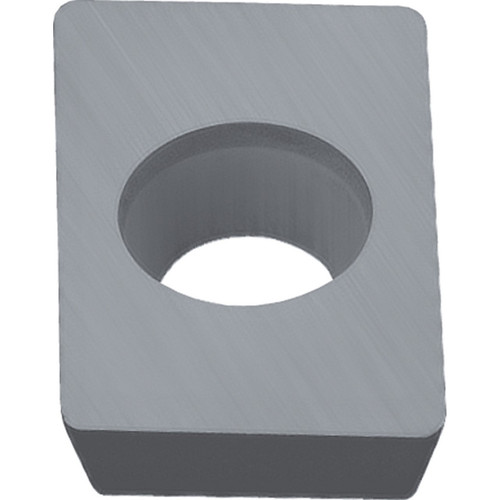

Kyocera Precision Tools TSP89034 | TPG322 TN100M 3/8" Circle Diameter x 1/8" Thickness Uncoated Cermet Milling Insert

$7.81
Brand:
Kyocera Precision Tools
Insert Size:
322
Material:
Cermet;Finish/Coating=Uncoated
Inscribed Circle (Decimal Inch):
0.3800"
Inscribed Circle (mm):
9.525mm
Thickness (Decimal Inch):
0.1300"
Thickness (mm):
3.18mm
SKU:
23250125
Weight:
0.08 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout
  • Insert for external turning, facing, chamfering, boring
  • 3 Cutting edges
  • Tough cermet with improved oxidation resistance and thermal shock resistance
  • Application: Turning of steel at high speed

Product Specifications
EDP Number TSP89034
Insert Included Angle (Degree) 60 Degree
Inscribed Circle (Inch) 3/8"
[IC] Inscribed Circle (mm) 9.525mm
[RE] Corner Radius (Inch) 1/32"
[RE] Corner Radius (mm) 0.80mm
[S] Thickness (Inch) 1/8"
[S] Thickness (mm) 3.18mm
Application Boring | Chamfering | External Turning | Facing
Coating Process Uncoated

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Kyocera Precision Tools
Insert Size:
322
Material:
Cermet;Finish/Coating=Uncoated
Inscribed Circle (Decimal Inch):
0.3800"
Inscribed Circle (mm):
9.525mm
Thickness (Decimal Inch):
0.1300"
Thickness (mm):
3.18mm
