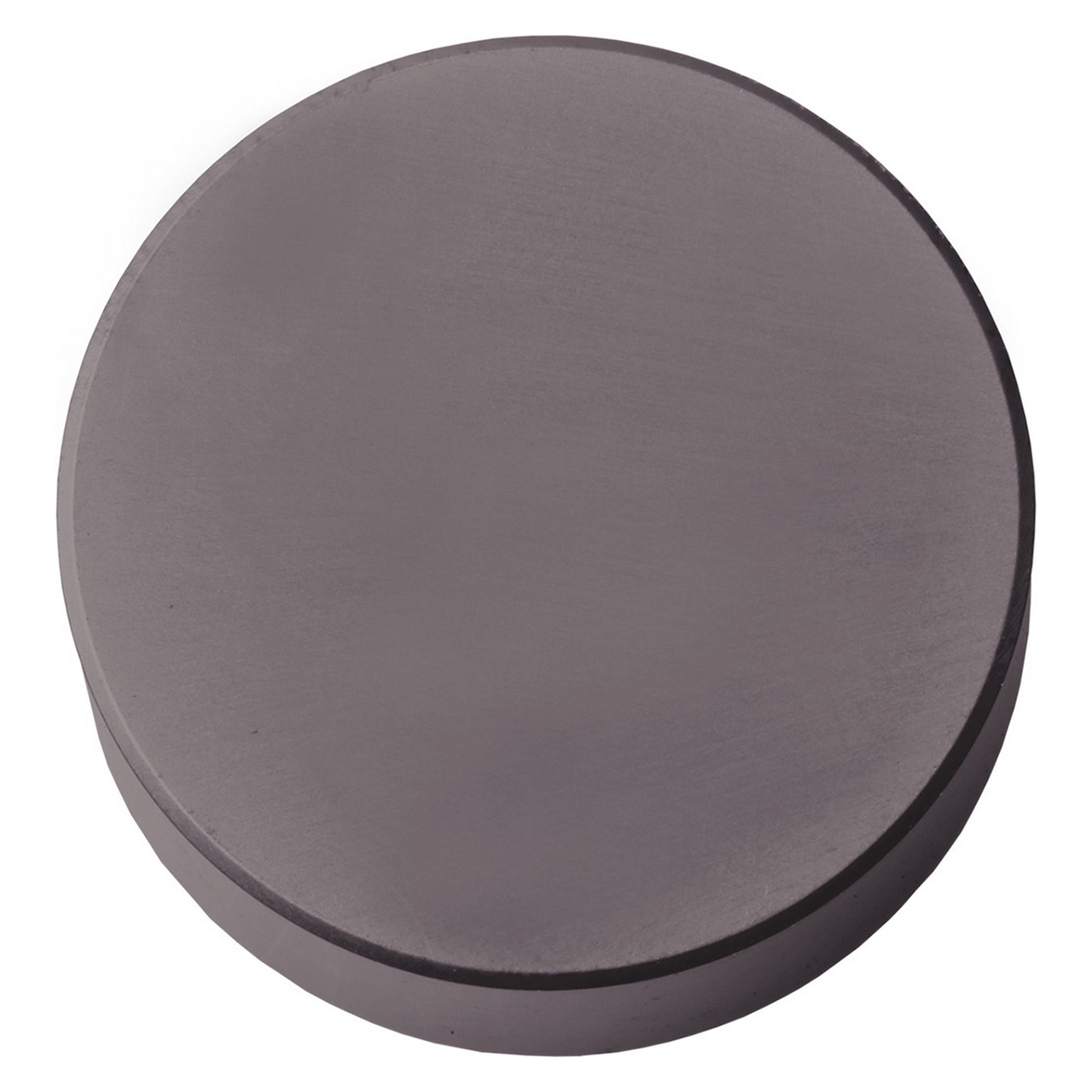

Kyocera Precision Tools TTA04324 | RNG43E001 KS6030 1/2" Circle Diameter x 3/16" Thickness Uncoated Ceramic Indexable Turning Insert

$11.80
Brand:
Kyocera Precision Tools
Insert Style:
RNG
Insert Size:
43
Material:
Ceramic;Inscribed Circle (Inch)=1/2"""
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1874"
Thickness (mm):
4.76mm
Manufacturer's Grade:
KS6030
SKU:
23251621
Weight:
0.08 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for external turning, facing, copying
  • SiAlON Ceramic with superior wear resistance and high resistance against boundary wear
  • Application: Finishing to medium machining of heat-resistant alloys

Product Specifications
EDP NumberTTA04324
Inscribed Circle (Inch)1/2"
Inscribed Circle (mm)12.70mm
Thickness (Inch)3/16"
Thickness (mm)4.76mm
ApplicationCopying | External Turning | Facing
Coating ProcessUncoated
Cutting RangeFinishing Medium
HandNeutral
Insert GradeKS6030
Insert Holding MethodClamp
Insert ShapeRound
Insert Size43
MaterialCeramic
Primary Workpiece MaterialHeat-Resistant Alloy (S)
Usage ClassificationLight Interruption
