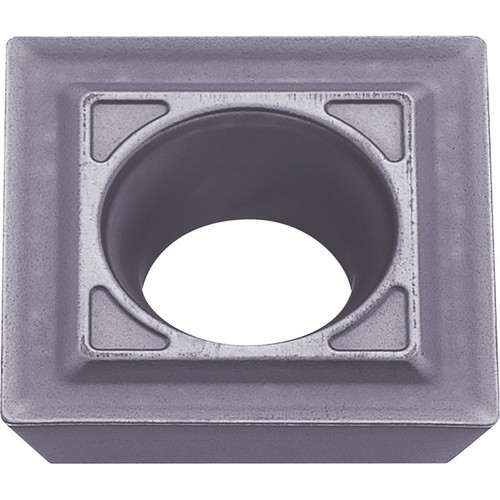

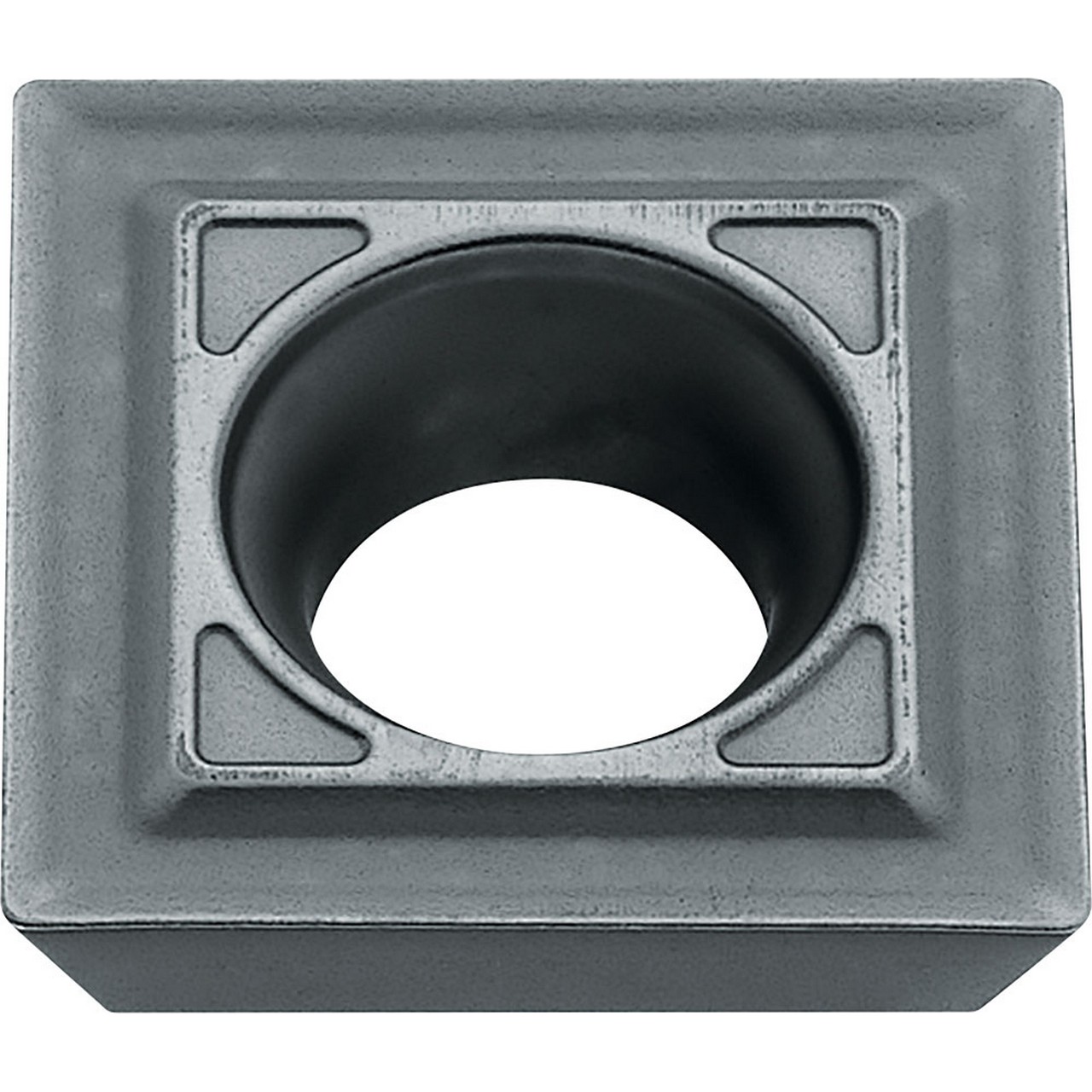

- Insert for chamfering, countersinking, back chamfering, V-shape slotting
- Low cutting force with 4 cutting edges
- ISO identification symbol K carbide (K10 relevant)
- Application: Stable cutting of cast iron, non-ferrous materials, non-metals, and titanium alloys
Product Specifications
| EDP Number | TWE00797 |
| Insert Included Angle (Degree) | 90 Degree |
| Inscribed Circle (Inch) | 3/8" |
| [IC] Inscribed Circle (mm) | 9.525mm |
| [RE] Corner Radius (Inch) | 1/64" |
| [RE] Corner Radius (mm) | 0.40mm |
| [S] Thickness (Inch) | 0.109" |
| [S] Thickness (mm) | 2.78mm |
| Application | Back Chamfering | Chamfering | Countersinking | V-Shape Slotting |
| Chipbreaker | C |
| Coating Process | Uncoated |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Size:
3181
Material:
Carbide;Finish/Coating=Uncoated
Inscribed Circle (Decimal Inch):
0.3800"
Inscribed Circle (mm):
9.525mm
Thickness (Decimal Inch):
0.1100"
Thickness (mm):
2.78mm
