Features:

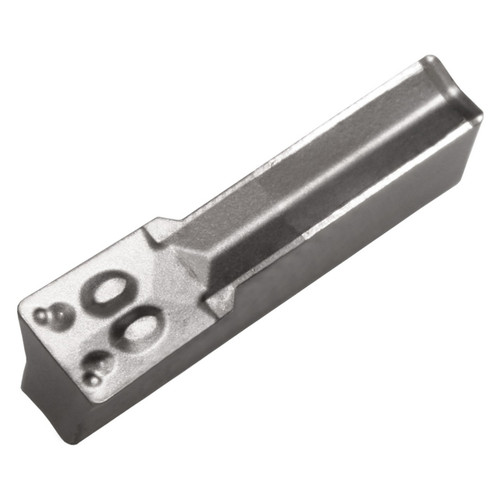

- Insert for face grooving
- 2 Cutting edges
- ISO identification symbol K carbide (K10 relevant)
- Application: Stable cutting of cast iron, non-ferrous materials, non-metals, and titanium alloys
Product Specifications
| Tool Number | TWE02071 |
| Max Depth of Cut (Decimal Inch) | 0.0866" |
| Max Depth of Cut (mm) | 2.20mm |
| Cutting Width (Decimal Inch) | 0.0394" |
| Cutting Width (mm) | 1.00mm |
| Cutting Width Minimum (Decimal Inch) | 0.0394" |
| Cutting Width Minimum (mm) | 1.00mm |
| Cutting Width Maximum (Decimal Inch) | 0.0394" |
| Cutting Width Maximum (mm) | 1.00mm |
| Insert Length (Decimal Inch) | 0.4724" |
| Insert Length (mm) | 12.00mm |
| Corner Radius (Inch) | 0.002" |
| Corner Radius (mm) | 0.05mm |
| Thickness (Inch) | 0.177" |
| Thickness (mm) | 4.50mm |
| Application | Face Grooving |
| Chipbreaker | AA |
| Coating Process | Uncoated |
| Cutting Range | Finishing Medium |
| Hand | Left Hand |
| Insert Holding Method | Clamp |
| Insert Grade | KW10 |
| Insert Size | 100 |
| Material | Carbide |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Non-Ferrous Materials (N) |
| Usage Classification | Light Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
GVF
Insert Size:
100
Material:
Carbide;Cutting Width (Decimal Inch)=0.0394"""
Cutting Width (mm):
1.00mm
Maximum Depth of Cut (Decimal Inch):
0.0866"
Maximum Depth of Cut (mm):
2.20mm
Manufacturer's Grade:
KW10
Finish/Coating:
Uncoated
