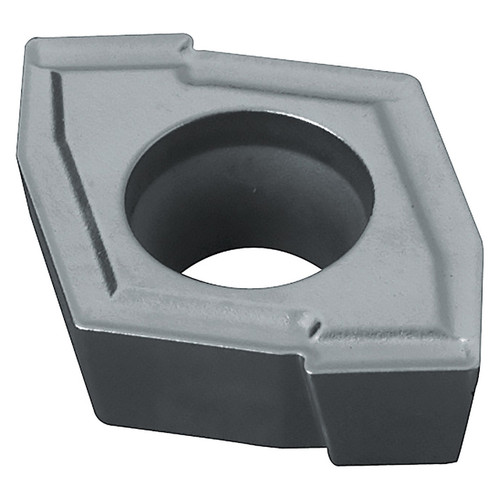

Kyocera Precision Tools TWE05020 | ZCMT10T304 KW10 1/2" Circle Diameter x 1/64" Radius Uncoated Carbide Indexable Drill Insert

$21.82 $12.66
(You save $9.16)
Brand:
Kyocera Precision Tools
Insert Style:
ZCMT
Insert Size:
10T304
Material:
Carbide;Manufacturer's Grade=KW10"
Thickness (Decimal Inch):
0.1600"
Thickness (mm):
3.97mm
Corner Radius (Decimal Inch):
0.0200"
Corner Radius (mm):
0.40mm
interval quantity:
10
SKU:
23252210
UPC:
Weight:
0.13 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for drilling
  • Same insert for inboard and outboard pockets
  • ISO identification symbol K carbide (K10 relevant)
  • Application: Stable cutting of cast iron, non-ferrous materials, non-metals, and titanium alloys

Product Specifications
Tool NumberTWE05020
Insert Length (Decimal Inch)0.4724"
Insert Length (mm)12.00mm
Corner Radius (Inch)1/64"
Corner Radius (mm)0.40mm
Thickness (Inch)5/32"
Thickness (mm)3.97mm
ApplicationDrilling
Coating ProcessUncoated
HandRight Hand
Insert Holding MethodScrew
Insert GradeKW10
Insert ShapeIrregular
Insert Size10T304
MaterialCarbide
Number of Cutting Edges4
Primary Workpiece MaterialNon-Ferrous Materials (N)
Usage Classification
