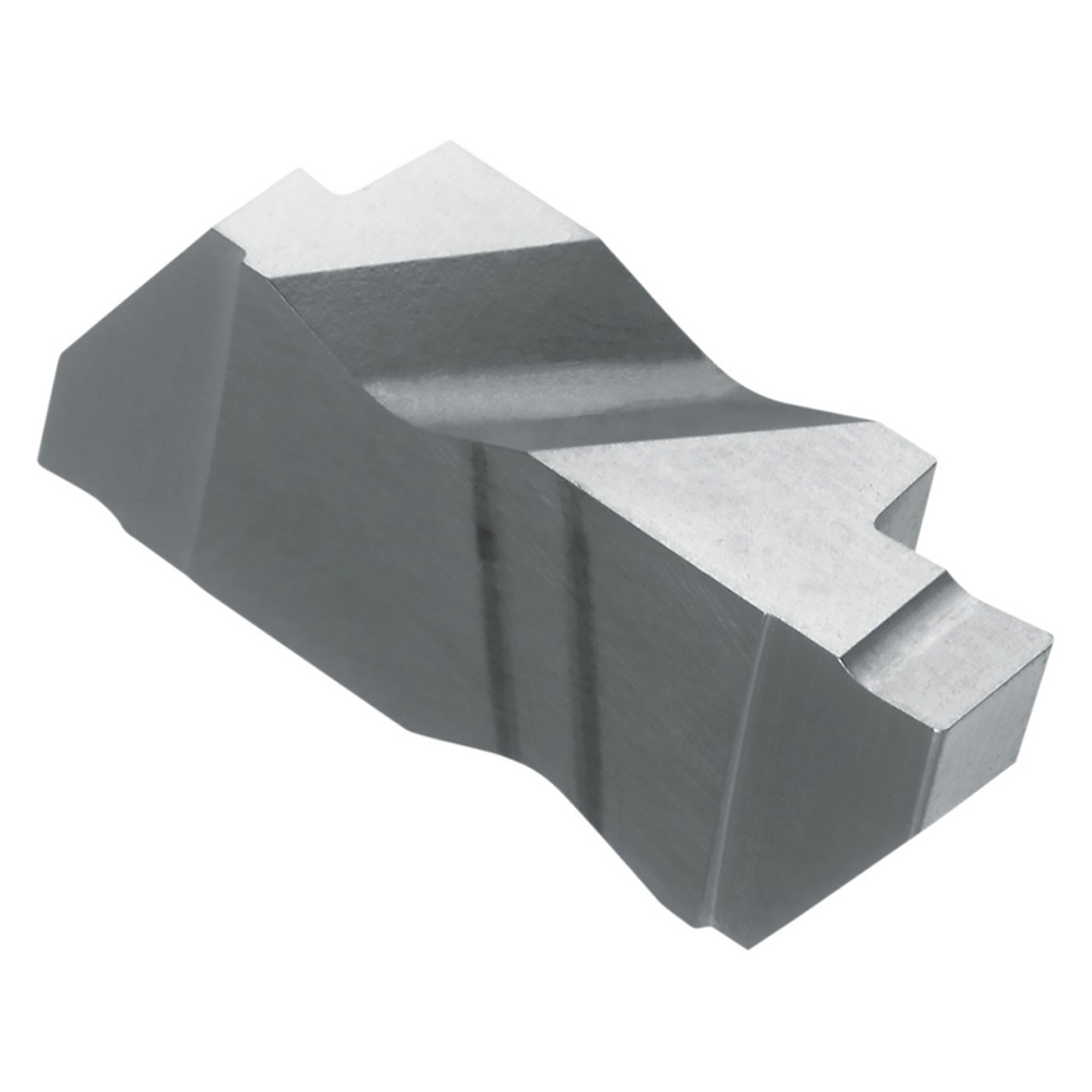

Kyocera Precision Tools TWE89067 | KCGP3125L KW10 0.1252" Cutting width x 0.8098" Insert Length Uncoated Carbide Grooving Insert

$19.72
Brand:
Kyocera Precision Tools
Insert Style:
KCGP
Insert Size:
3125
Material:
Carbide;Cutting Width (Decimal Inch)=0.1252"""
Cutting Width (mm):
3.18mm
Maximum Depth of Cut (Decimal Inch):
0.1496"
Maximum Depth of Cut (mm):
3.80mm
Manufacturer's Grade:
KW10
Finish/Coating:
Uncoated
SKU:
23252589
Weight:
0.25 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for external grooving, internal large diameter shallow grooving
  • 2 Cutting edges
  • ISO identification symbol K carbide (K10 relevant)
  • Application: Stable cutting of cast iron, non-ferrous materials, non-metals, and titanium alloys

Product Specifications
Tool NumberTWE89067
Max Depth of Cut (Decimal Inch)0.1496"
Max Depth of Cut (mm)3.80mm
Cutting Width (Decimal Inch)0.1252"
Cutting Width (mm)3.18mm
Cutting Width Minimum (Decimal Inch)0.1252"
Cutting Width Minimum (mm)3.18mm
Cutting Width Maximum (Decimal Inch)0.1252"
Cutting Width Maximum (mm)3.18mm
Insert Length (Decimal Inch)0.8098"
Insert Length (mm)20.57mm
Corner Radius (Inch)0.008"
Corner Radius (mm)0.20mm
Thickness (Inch)0.344"
Thickness (mm)8.74mm
ApplicationExternal Grooving | Internal Large Diameter Shallow Grooving
Coating ProcessUncoated
Cutting RangeFinishing Medium
HandLeft Hand
Insert Holding MethodClamp
Insert GradeKW10
Insert Size3125
MaterialCarbide
Number of Cutting Edges2
Primary Workpiece MaterialNon-Ferrous Materials (N)
Usage ClassificationLight Interruption
