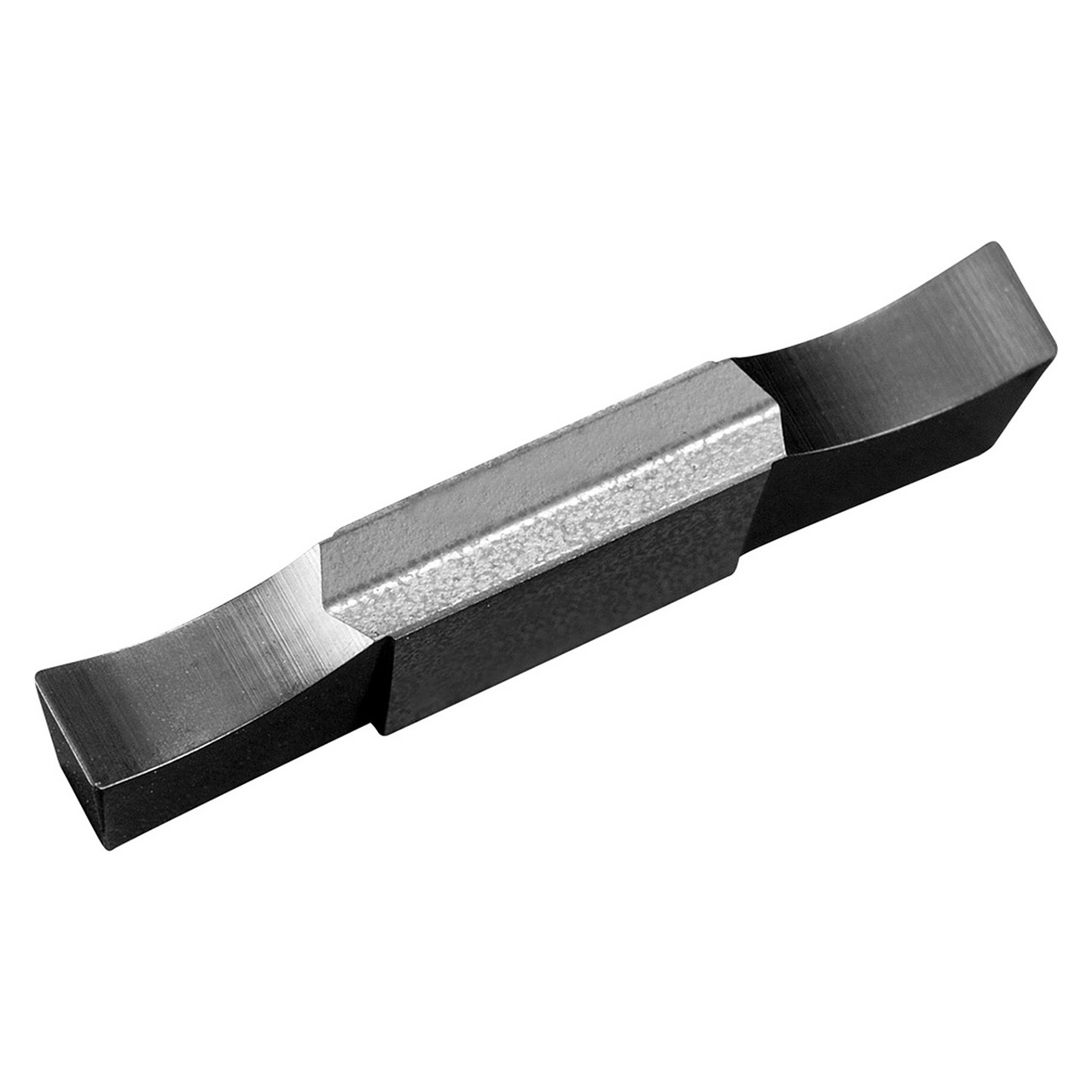

Features:
- Insert for external grooving
- Low Cutting Force / 2-edge
- 2 Cutting edges
- ISO identification symbol K carbide (equivalent to K10), tough micro-grain carbide
- Application: High wear resistance and toughness for non-ferrous materials, and non-metals, and titanium alloys
Product Specifications
| Tool Number | TWF10720 |
| Max Depth of Cut (Decimal Inch) | 0.6693" |
| Max Depth of Cut (mm) | 17.00mm |
| Cutting Width (Decimal Inch) | 0.0984" |
| Cutting Width (mm) | 2.50mm |
| Cutting Width Minimum (Decimal Inch) | 0.0984" |
| Cutting Width Minimum (mm) | 2.50mm |
| Cutting Width Maximum (Decimal Inch) | 0.0984" |
| Cutting Width Maximum (mm) | 2.50mm |
| Insert Length (Decimal Inch) | 0.7874" |
| Insert Length (mm) | 20.00mm |
| Corner Radius (Inch) | 0.008" |
| Corner Radius (mm) | 0.20mm |
| Thickness (Inch) | 0.169" |
| Thickness (mm) | 4.30mm |
| Application | External Grooving |
| Chipbreaker | GS |
| Coating Process | Uncoated |
| Cutter Pitch | CVD |
| Cutting Range | Finishing Medium |
| Hand | Neutral |
| Insert Holding Method | Clamp |
| Insert Grade | GW15 |
| Insert Size | 2520 |
| Material | Carbide |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Non-Ferrous Materials (N) |
| Usage Classification | Light Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
GDG
Insert Size:
2520
Material:
Carbide;Cutting Width (Decimal Inch)=0.0984"""
Cutting Width (mm):
2.50mm
Maximum Depth of Cut (Decimal Inch):
0.6693"
Maximum Depth of Cut (mm):
17.00mm
Manufacturer's Grade:
GW15
Finish/Coating:
Uncoated
