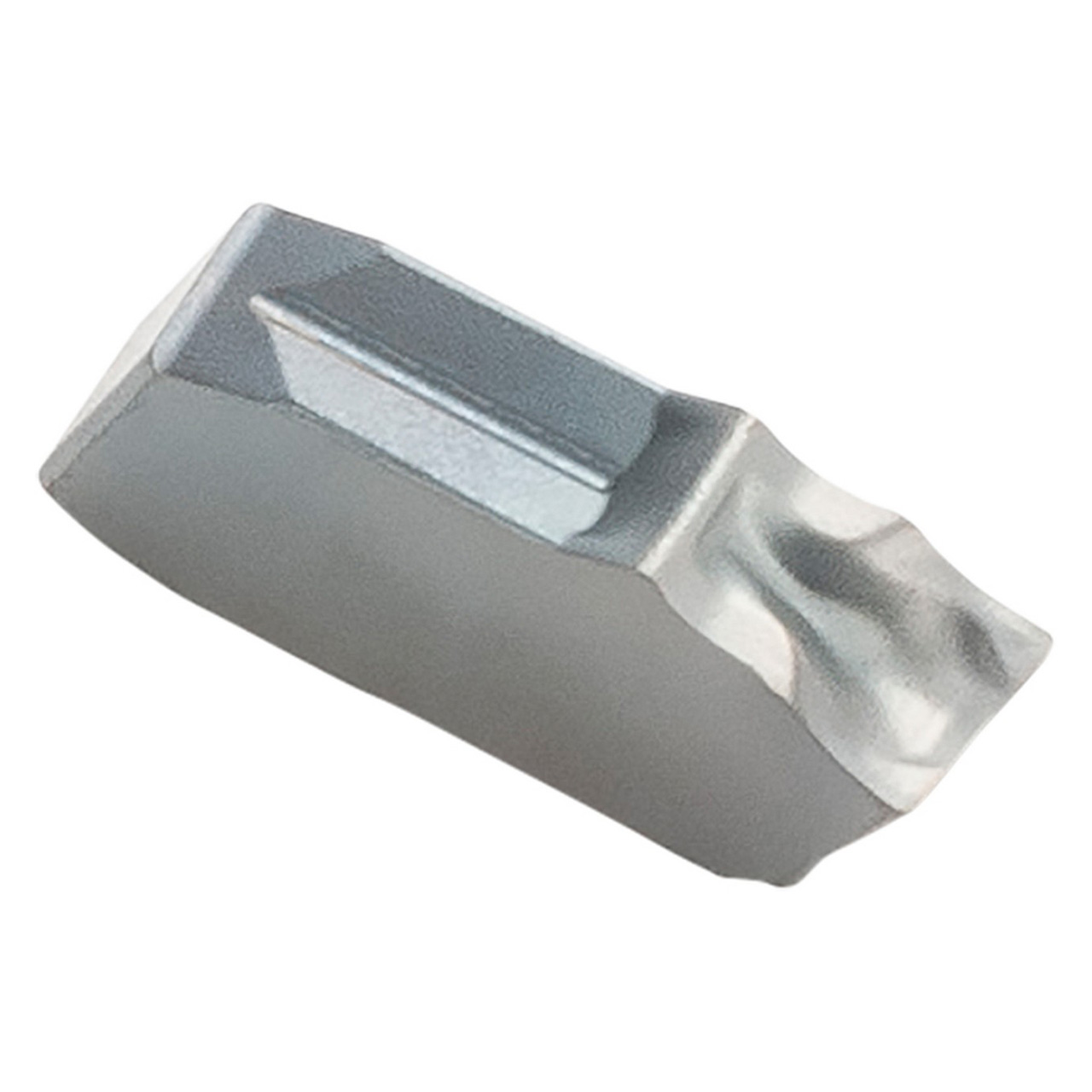

Kyocera Precision Tools TWG40009 | PKM40L030PM6D GW15 0.1575" Cutting Width x 0.012" Radius Uncoated Carbide Cut-Off Insert

$13.80
Brand:
Kyocera Precision Tools
Material:
Carbide;Insert Style=PKM"
Insert Size:
40
Lead Angle Direction:
Left-Hand
Cutting Width (Decimal Inch):
0.1575"
Cutting Width (mm):
4.00mm
Manufacturer's Grade:
GW15
Series:
KPK
SKU:
23252842
Weight:
0.12 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for Cut-Off
  • 6 Degree lead angle
  • 1 Cutting edge
  • ISO identification symbol K carbide (equivalent to K10), tough micro-grain carbide
  • Application: High wear resistance and toughness for non-ferrous materials, and non-metals, and titanium alloys

Product Specifications
Tool NumberTWG40009
Cutting Width (Decimal Inch)0.1575"
Cutting Width (mm)4.00mm
Cutting Width Minimum (Decimal Inch)0.1575"
Cutting Width Minimum (mm)4.00mm
Cutting Width Maximum (Decimal Inch)0.1575"
Cutting Width Maximum (mm)4.00mm
Corner Radius (Inch)0.012"
Corner Radius (mm)0.30mm
ApplicationCut-Off
ChipbreakerPM
Coating ProcessUncoated
Cutter PitchPVD
Cutting RangeFinishing Medium
HandLeft Hand
Insert Holding MethodSelf Clamp
Insert GradeGW15
Insert Size40
MaterialCarbide
Number of Cutting Edges1
Primary Workpiece MaterialCast Iron (K) | Non-Ferrous Materials (N)
Usage ClassificationLight Interruption
