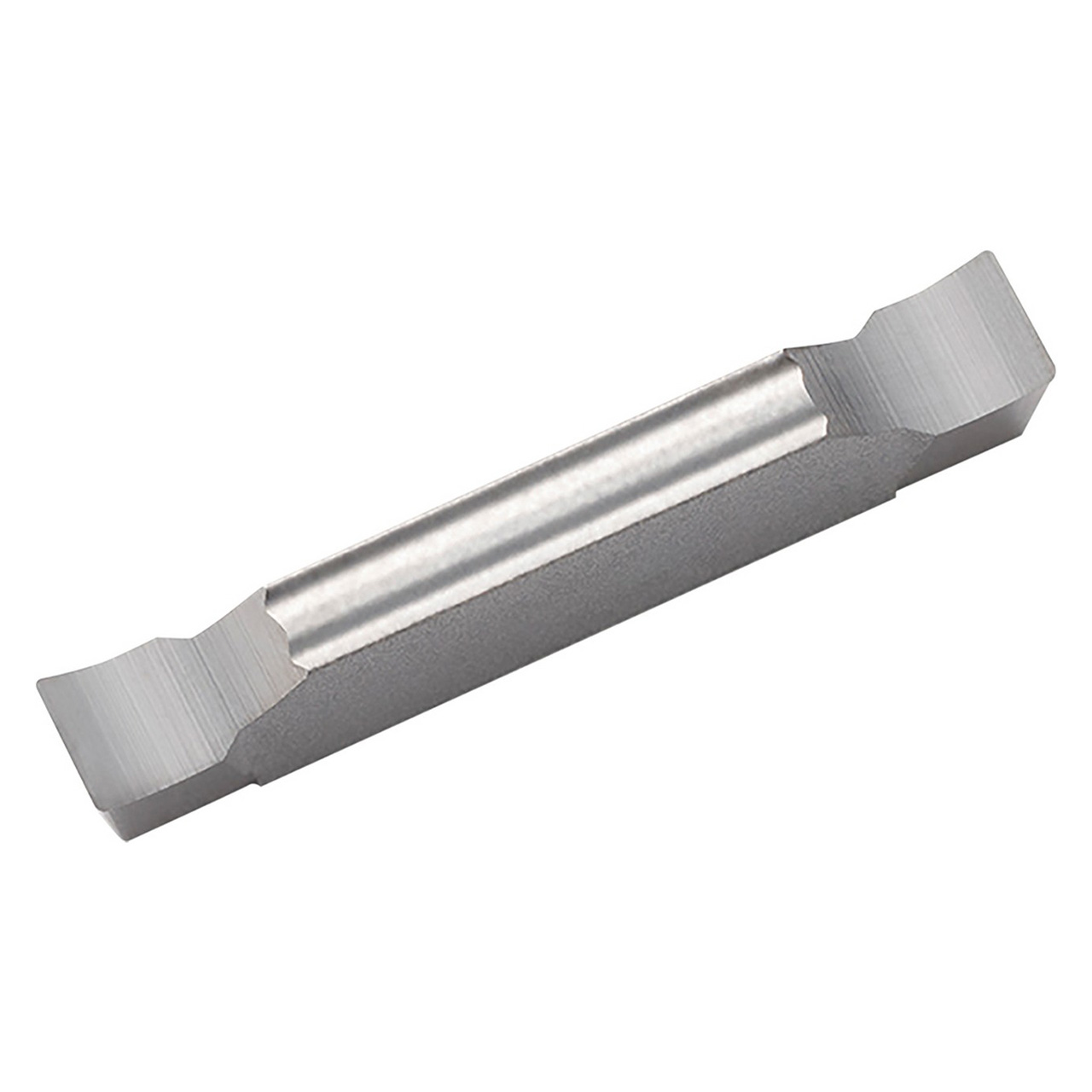

Kyocera Precision Tools TWG40023 | GDFG4020N040GS GW15 0.1575" Cutting width x 0.7874" Insert Length Uncoated Carbide Grooving Insert

$20.43
Brand:
Kyocera Precision Tools
Insert Style:
GDFG
Insert Size:
4020
Material:
Carbide;Cutting Width (Decimal Inch)=0.1575"""
Cutting Width (mm):
4.00mm
Manufacturer's Grade:
GW15
Finish/Coating:
Uncoated
SKU:
23252856
Weight:
0.11 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for grooving, traversing
  • 2 Cutting edges
  • ISO identification symbol K carbide (equivalent to K10), tough micro-grain carbide
  • Application: High wear resistance and toughness for non-ferrous materials, and non-metals, and titanium alloys

Product Specifications
Tool NumberTWG40023
Cutting Width (Decimal Inch)0.1575"
Cutting Width (mm)4.00mm
Cutting Width Minimum (Decimal Inch)0.1575"
Cutting Width Minimum (mm)4.00mm
Cutting Width Maximum (Decimal Inch)0.1575"
Cutting Width Maximum (mm)4.00mm
Insert Length (Decimal Inch)0.7874"
Insert Length (mm)20.00mm
Corner Radius (Inch)1/64"
Corner Radius (mm)0.40mm
Thickness (Inch)0.177"
Thickness (mm)4.50mm

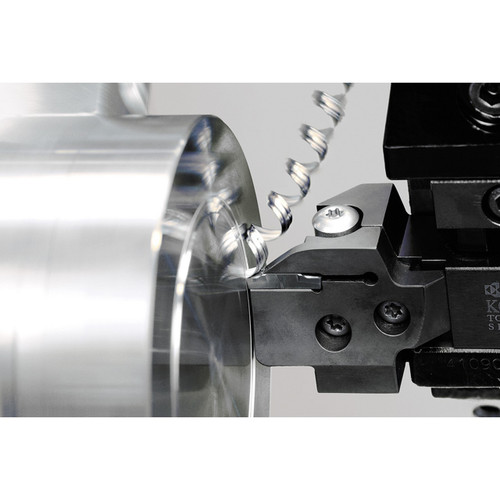

ApplicationFace Grooving | Traversing
ChipbreakerGS
Coating ProcessUncoated
Cutter PitchPVD
Cutting RangeFinishing Medium
HandNeutral
Insert Holding MethodClamp
Insert GradeGW15
Insert Size4020
MaterialCarbide
Number of Cutting Edges2
Primary Workpiece MaterialNon-Ferrous Materials (N)
Usage ClassificationLight Interruption
