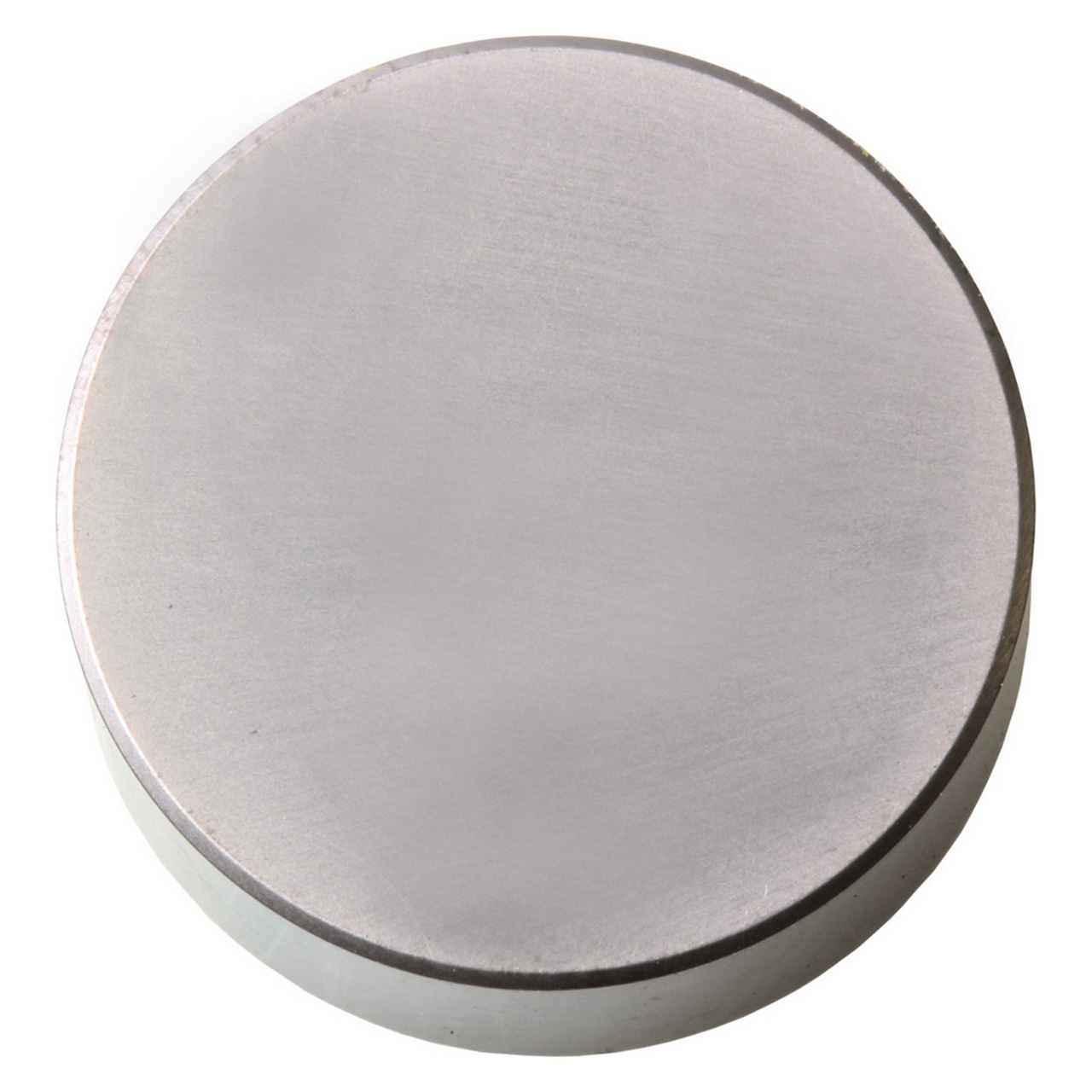

Features:
- Insert for external turning, facing, copying
- Whisker-reinforced ceramic can be used at higher cutting speeds and feed rates than SiAlON
- Application: For stable roughing, plunging and semi-finishing operations in Inconel nickel-based alloys
Product Specifications
| EDP Number | TX955283 |
| Inscribed Circle (Inch) | 3/4" |
| Inscribed Circle (mm) | 19.05mm |
| Thickness (Inch) | 5/16" |
| Thickness (mm) | 7.94mm |
| Application | Copying | External Turning | Facing |
| Coating Process | Uncoated |
| Cutter Pitch | PVD |
| Cutting Range | Finishing Medium |
| Hand | Neutral |
| Insert Grade | KXW1 |
| Insert Holding Method | Clamp |
| Insert Shape | Round |
| Insert Size | 65 |
| Material | Ceramic |
| Primary Workpiece Material | Heat-Resistant Alloy (S) |
| Usage Classification | Continuous |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
RNG
Insert Size:
65
Material:
Ceramic;Inscribed Circle (Inch)=3/4"""
Inscribed Circle (Decimal Inch):
0.7500"
Inscribed Circle (mm):
19.05mm
Thickness (Inch):
5/16"
Thickness (Decimal Inch):
0.3126"
Thickness (mm):
7.94mm
Manufacturer's Grade:
KXW1
