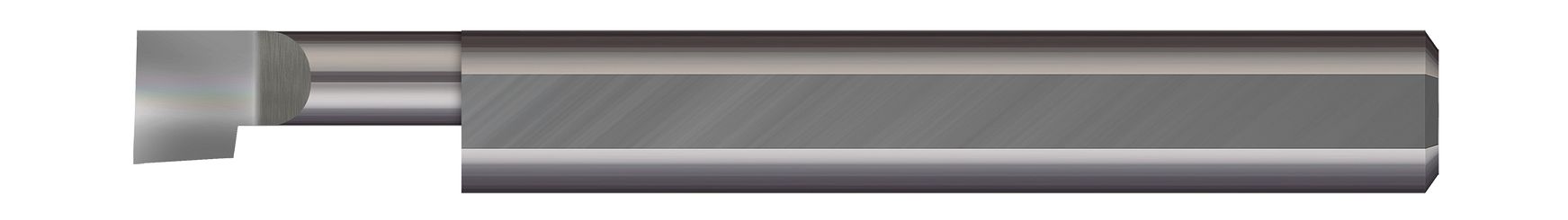

Designed for facing and boring applications in bores .044" and larger, this right hand, sharp boring tool is engineered with a polished split face for improved edge retention and chip evacuation.
- Designed for facing and boring applications in bores .044" and larger
- Polished split face for improved edge retention and chip evacuation while reducing galling
- Split geometry makes the tool as rigid as possible
- Sharp corner profile
- Lockdown flat automatically locates tool on center
- Coating options provide added lubricity and increased wear resistance in difficult to machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Min Bore Diameter (Inch) | 0.1520" |
| Hand Direction | Right Hand |
| Finish/Coating | Uncoated |
| Max Bore Depth (Inch) | 0.900" |
| Projection (Inch) | 0.0350" |
| Shank Diameter (Inch) | 0.1875" (3/16) |
| Centerline Offset (Inch) | 0.0463" |
| Neck Diameter (Inch) | 0.1050" |
| Overall Length (Inch) | 2" (2) |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Micro 100
Minimum Bore Diameter (Decimal Inch):
0.1520"
Head Width (Inch):
9/64"
Head Width (Decimal Inch):
0.1400"
Finish/Coating:
Uncoated
Maximum Bore Depth (Decimal Inch):
0.9000"
Projection (Decimal Inch):
0.0350"
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Neck Diameter (Decimal Inch):
0.1050"
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
