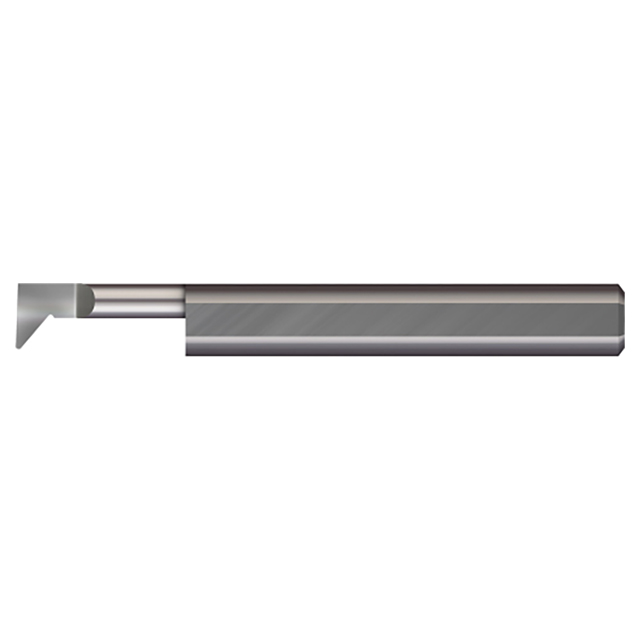

Micro 100 PR-3601000 | 0.3600" Minimum Bore Diameter x 1" Maximum Bore Depth x 0.008" Radius x 3/8" Shank x 2.50" OAL Brazed Carbide Radial Profiling Tool

$61.20
Ships:
From Partner Facility
Brand:
Micro 100
Material:
Carbide
Tool Bit Style:
PR
Type:
Turning
Cutting Direction:
Right Hand
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.50"
Minimum Bore Diameter (Decimal Inch):
0.3600"
Maximum Bore Depth (Inch):
1"
Maximum Bore Depth (Decimal Inch):
1.000"
Finish/Coating:
Uncoated
Radius (Decimal Inch):
0.008"
Ships:
From Partner Facility
SKU:
25146387
UPC:
Weight:
0.11 LBS
Shipping:
Calculated at Checkout
Product Specifications
Min Bore Diameter (Decimal Inch) 0.3600"
Hand Direction Right Hand
Finish/Coating Uncoated
Max Bore Depth (Inch) 1"
Max Bore Depth (Decimal Inch) 1.000"
Projection (Decimal Inch) 0.1300"
Shank Diameter (Inch) 3/8"
Shank Diameter (Decimal Inch) 0.3750"
Centerline Offset (Decimal Inch) 0.1725"
Corner Radius (Decimal Inch) 0.008"
Neck Diameter (Decimal Inch) 0.2300"
Overall Length (Inch) 2-1/2"
Overall Length (Decimal Inch) 2.50"
Tooth Width (Inch) 7/64"
Tooth Width (Decimal Inch) 0.1090"

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Micro 100
Material:
Carbide
Tool Bit Style:
PR
Type:
Turning
Cutting Direction:
Right Hand
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.50"
Minimum Bore Diameter (Decimal Inch):
0.3600"
Maximum Bore Depth (Inch):
1"
Maximum Bore Depth (Decimal Inch):
1.000"
Finish/Coating:
Uncoated
Radius (Decimal Inch):
0.008"
Ships:
From Partner Facility
