Product Specifications
| Min Bore Diameter (Decimal Inch) | 0.4600" |
| Hand Direction | Right Hand |
| Finish/Coating | AlTiN |
| Max Bore Depth (Decimal Inch) | 2.100" |
| Projection (Decimal Inch) | 0.0750" |
| Shank Diameter (Inch) | 1/2" |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Centerline Offset (Decimal Inch) | 0.2100" |
| Offset (Decimal Inch) | 0.193" |
| Corner Radius (Decimal Inch) | 0.006" |
| Face Dimension (Decimal Inch) | 0.251" |
| Length from Holder (Decimal Inch) | 2.540" |
| Neck Diameter (Decimal Inch) | 0.3850" |
| Overall Length (Inch) | 4" |
| Overall Length (Decimal Inch) | 4.00" |
| Split Length (Decimal Inch) | 0.285" |
| Tooth Width (Decimal Inch) | 0.2110" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov

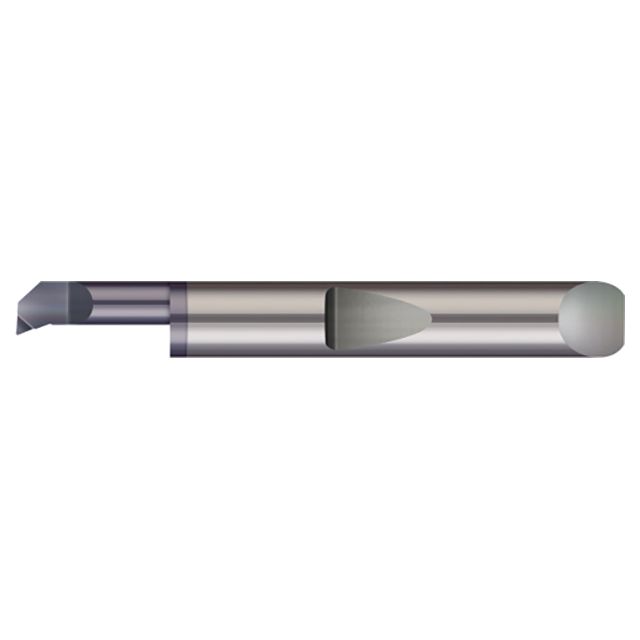

Brand:
Micro 100
Minimum Bore Diameter (Decimal Inch):
0.4600"
Maximum Bore Depth (Decimal Inch):
2.100"
Material:
Carbide
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.00"
Finish/Coating:
AlTiN
Boring Tool Type:
Top Rake Chipbreaker
Ships:
From Partner Facility
IsDiscontinued:
