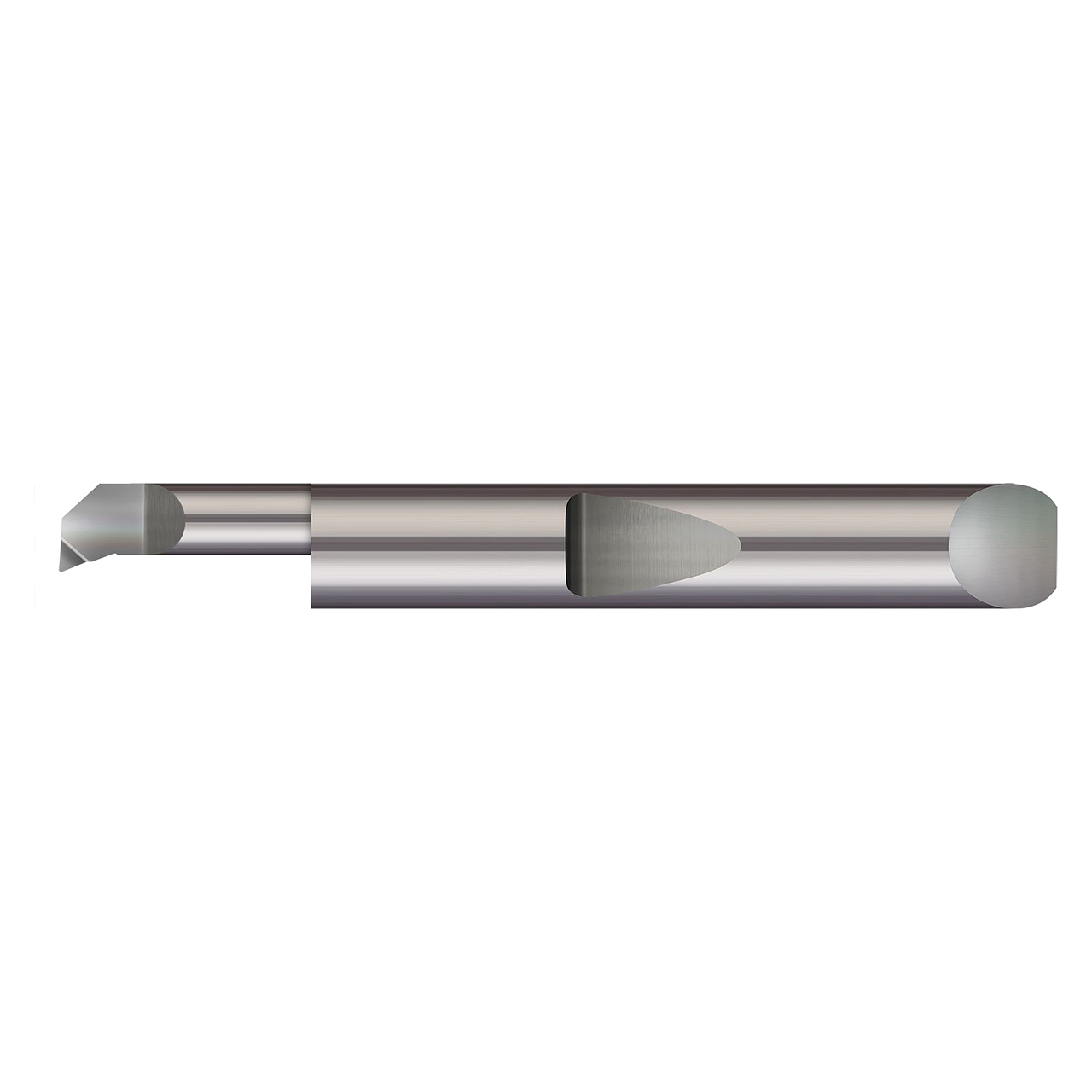

Micro 100 QBT4-100600X | 0.600" Maximum Bore Depth x 0.1875" Shank x 2.000" OAL x 0.004" Corner Radius Right hand AlTiN Coated Boring Bar

Brand:

Micro 100

Minimum Bore Diameter (Inch):

7/64"

Minimum Bore Diameter (Decimal Inch):

0.1100"

Minimum Bore Diameter (mm):

2.80mm

Maximum Bore Depth (Inch):

19/32"

Maximum Bore Depth (Decimal Inch):

0.6000"

Maximum Bore Depth (mm):

15.24mm

Cutting Direction:

Right Hand

Shank Diameter (Inch):

3/16"

Shank Diameter (Decimal Inch):

0.1875"

Shank Diameter (mm):

4.76mm

Overall Length (Inch):

2"

Overall Length (Decimal Inch):

2.0000"

Overall Length (mm):

50.80mm

Finish/Coating:

AlTiN

SKU:

25294615

Weight:

1.23 LBS
