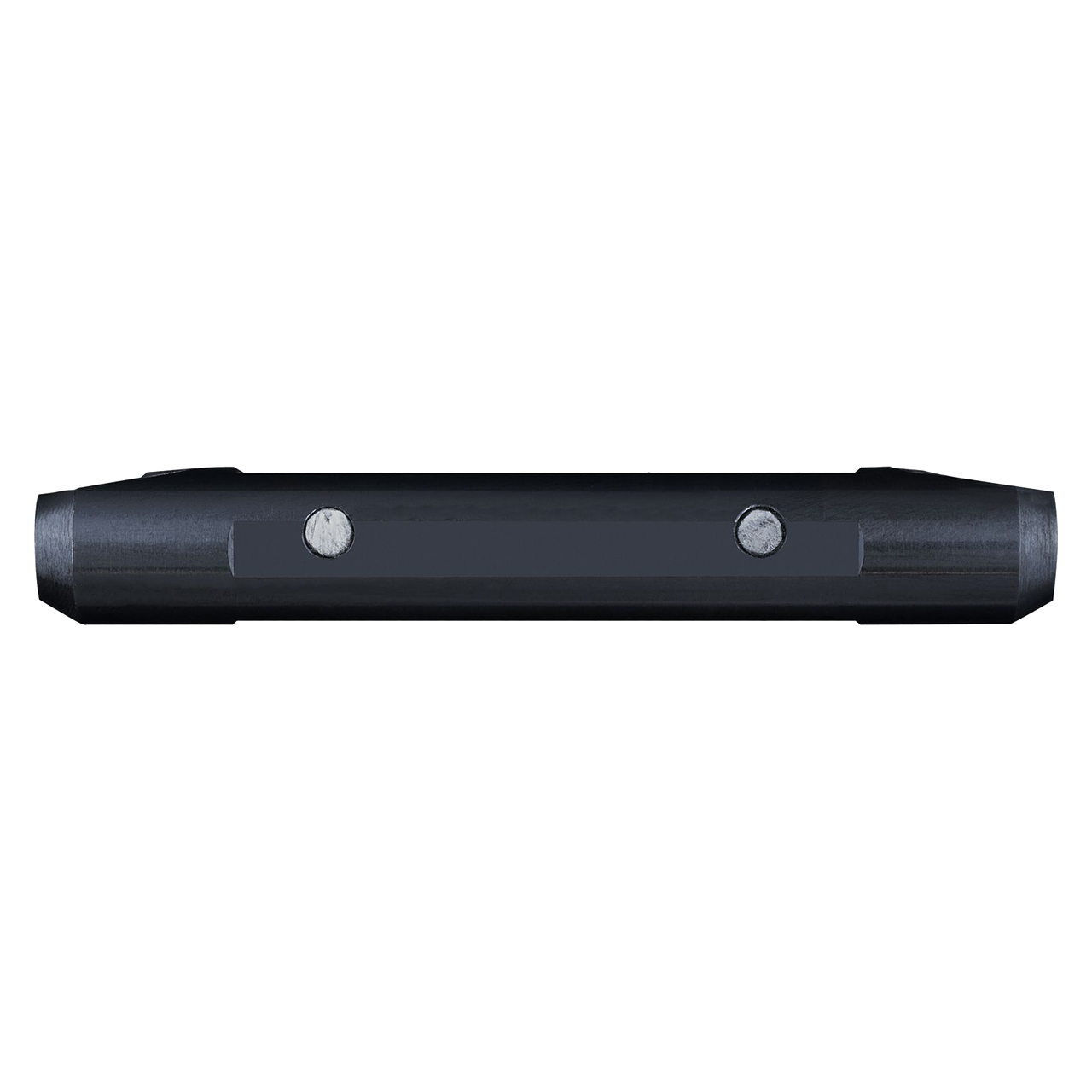

Micro 100 QD1-3-4-500 | 0.1875" Maximum Bore Depth x 0.5000" Shank x 3.200" OAL Uncoated Boring & Grooving Bar Holder

$237.20
Brand:
Micro 100
Overall Length (Inch):
3-13/64"
Overall Length (Decimal Inch):
3.2000"
Overall Length (mm):
81.28mm
SKU:
25294620
Weight:
1.23 LBS
Shipping:
Calculated at Checkout
Micro 100 QD1-3-4-500 | 0.1875" Maximum Bore Depth x 0.5000" Shank x 3.200" OAL Uncoated Boring & Grooving Bar Holder

Product Specifications
Manufacturer Part NumberQD1-3-4-500
Shank Diameter (Decimal Inch)0.5000"
Shank Diameter (Inch)1-2"
Overall Length (Decimal Inch)3.20"
Tool Holder Bore Diameter (Decimal Inch)0.1875"
Tool Holder Bore Diameter (Inch)3/16"
Tool Holder Collar Diameter (Decimal Inch)0.2500"
Tool Holder Collar Diameter (Inch)1/4"
CoatingUncoated
Product TypeBoring & Grooving Bar Holder

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Micro 100
Overall Length (Inch):
3-13/64"
Overall Length (Decimal Inch):
3.2000"
Overall Length (mm):
81.28mm
